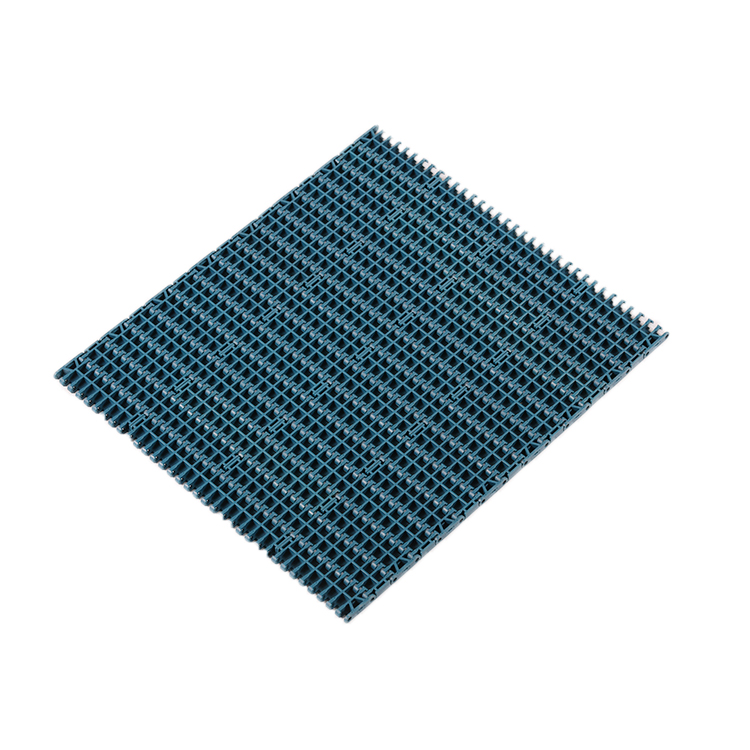

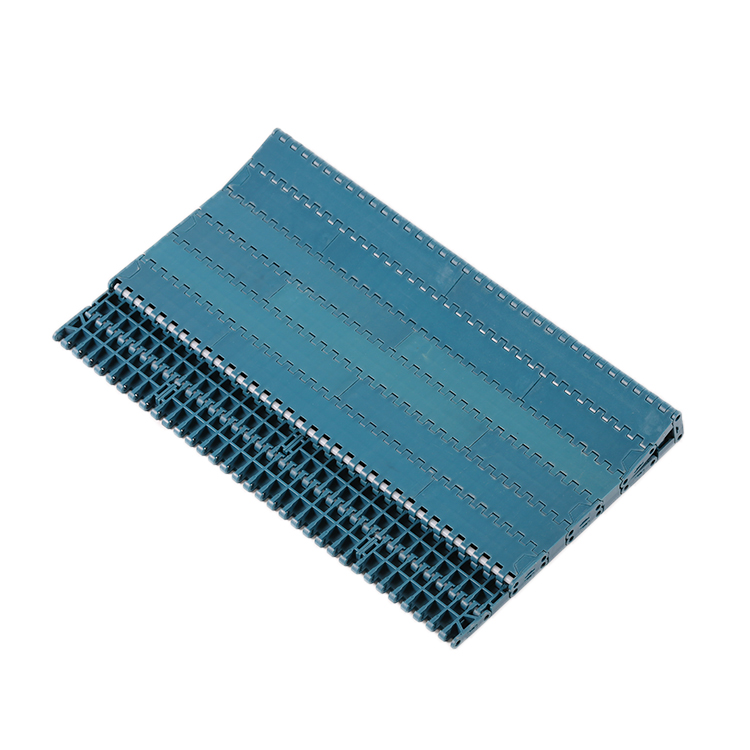

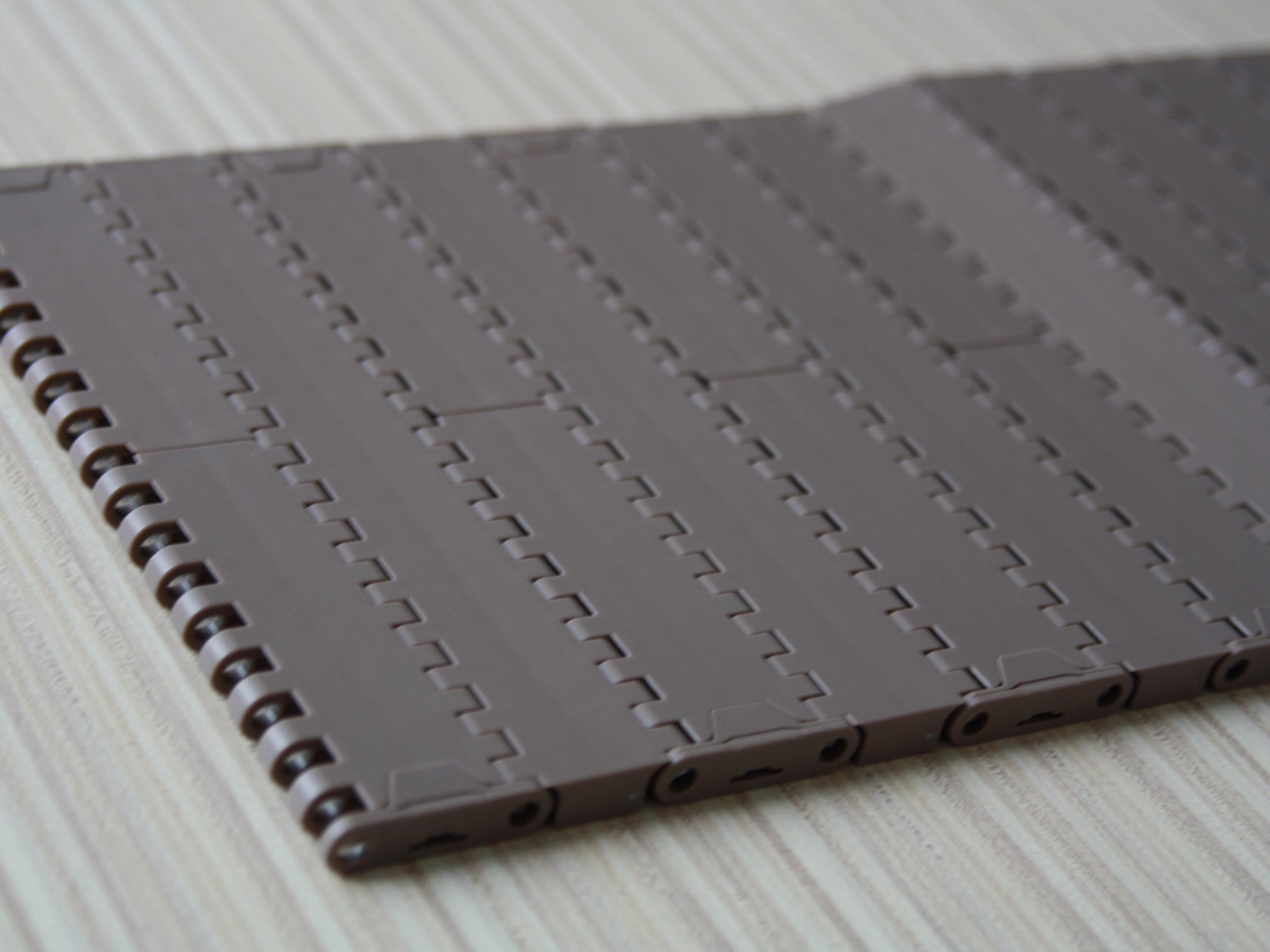

1000 Flat Top Modular Plastic Conveyor Belt
Parameter
|
Modular Type |
1000FT |
|
|
Standard Width(mm) |
85 170 255 340 425 510 595 680 765 850 85N
|
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
|
Non-standard Width |
W=85*N+10*n |
|
|
Pitch |
25.4 |
|
|
Belt Material |
POM/PP |
|
|
Pin Material |
POM/PP/PA6 |
|
|
Pin Diameter |
5mm |
|
|
Work Load |
POM:17280 PP:9000 |
|
|
Temperature |
POM:-30C°~ 90C° PP:+1C°~90C° |
|
|
Open Area |
0% |
|
|
Reverse Radius(mm) |
25 |
|
|
Belt Weight(kg/㎡) |
6.8 |
|
1000 Injection Moulded Sprockets
| Model Number | Teeth |
Pitch Diametet(mm) |
Outside Diameter |
Bore Size |
Other Type |
||
| mm | Inch | mm | Inch | mm |
Available on Request By Machined |
||
| 3-2542-12T |
12 |
98.1 |
3.86 |
98.7 | 3.88 | 25 30 35 40*40 | |
| 3-2542-16T |
16 |
130.2 |
5.12 |
117.3 | 4.61 | 25 30 35 40*40 | |
| 3-2542-18T |
18 |
146.3 |
5.75 |
146.8 | 5.77 | 25 30 35 40*40 | |
Application
1.Glass
2.PET containers
3.Food
4.Can
5.Warehousing
6.Postal
7.Battery
8.Beverage
9.Auto parts
10Tobacco
11.Other industries
Advantage
1.Fully closed surface
2.Prevent small pieces of material stuck on the conveyor belt
3.Width optional
4.Color optional
5.Easy to clean
6.High quality
7.Lowe maintaince cost
8.Safe design
9.Stable operation
10.Good after-sales service
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.
POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
