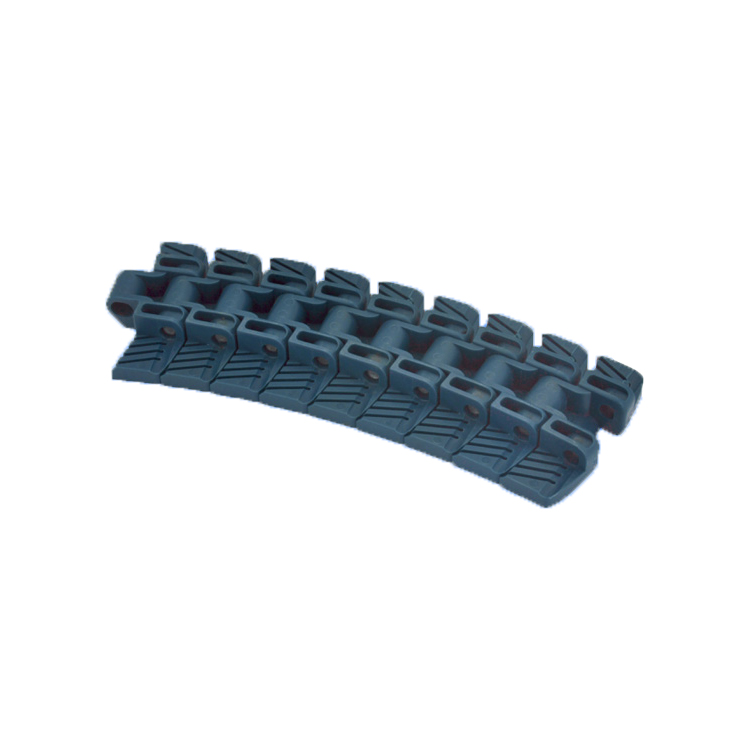

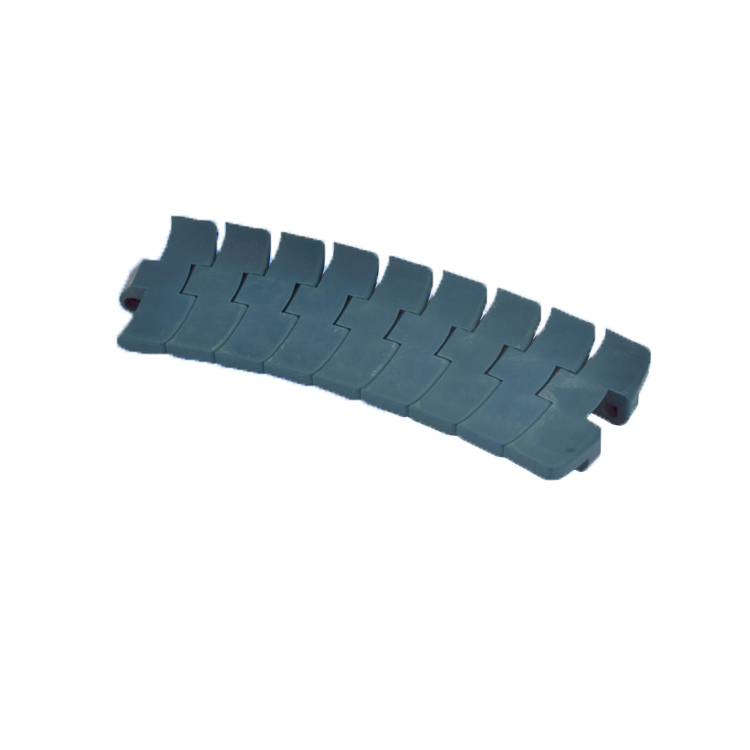

1060 Heavy-duty side flexible plastic chain

Short Description:

This chainbelt offers a new and unique solution for sideflexing applications in plants with modular conveyor chains. The chainbelt is best suitable for conveying food ,beverage ,pet bottles,aluminum can or containers.

The longest distance: 12M

Pitch: 25.4mm

Width: 83.8mm

Pin material: stainless steel

Plate material: POM

Packing: 10 feet=3.048 M/box 40pcs/M

Send email to us

Product Detail

Product Tags

Parameter

Chain Type

Plate Width

Working Load

Back Radius

(min)

Backflex Radius(min)

Weight

inch

N(21℃)

Kg/m

1060-K325

83.8

3.25

1890

500

130

1.91

1050/1060 Series machined drive sprocket

Machined Sprockets	Teeth	PD(mm)	OD(mm)	D(mm)
1-1050/1060-11-20	11	90.16	92.16	20 25 30 35
1-1050/1060-16-20	16	130.2	132.2	25 30 35 35

1050/1060 Corner Tracks

Machined Sprockets	R	W	T
1050/1060-K325-R500-100-1	1500	100
1050/1060-K325-R500-185-2		185	85
1050/1060-K325-R500-270-3		270
1050/1060-K325-R500-355-4		355

Advantages

It is suitable for multi-section turning conveying line of can, box frame, film wrap and other products .
The conveyor line is easy to clean and a magnetic track is needed for turning.
Hinged pin shaft connection, can increase or decrease the chain joint.
