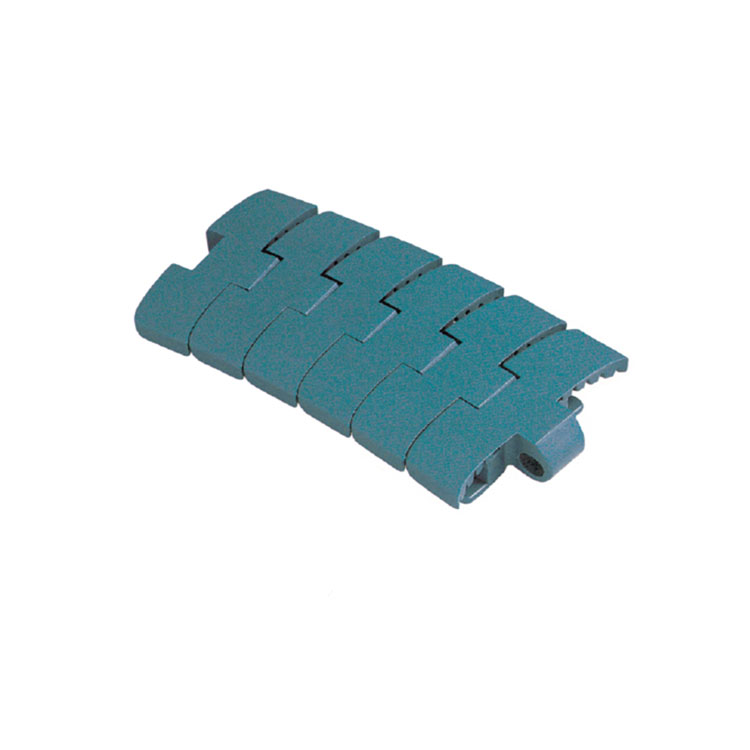

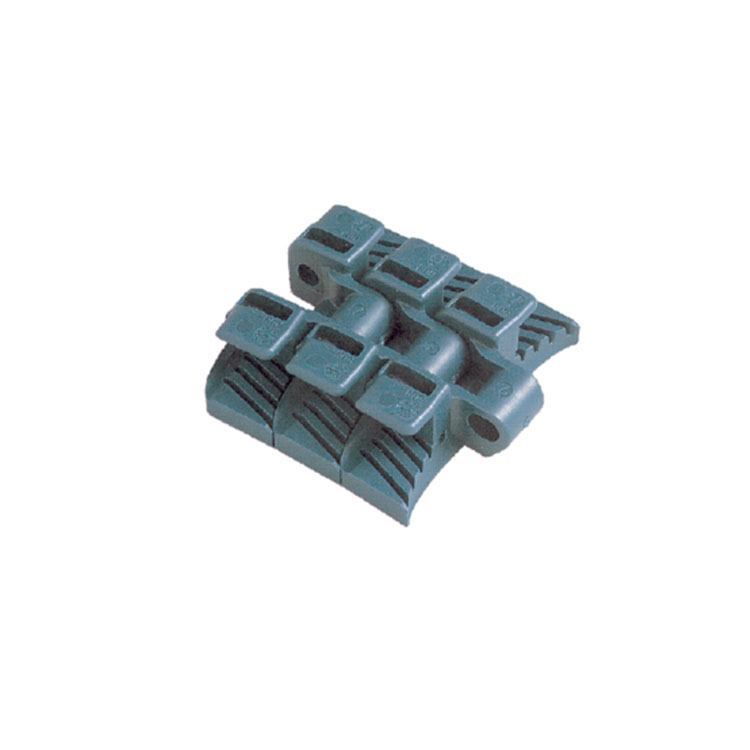

1060TAB Heavy-duty side flexible plastic chain

Short Description:

This chainbelt offers a new and unique solution for sideflexing applications in plants with modular conveyor chains. The chainbelt is best suitable for conveying food ,beverage ,pet bottles,aluminum can or containers.

Send email to us

Product Detail

Product Tags

Parameter

Chain Type

Plate Width

Working Load

Back Radius

(min)

Backflex Radius(min)

Weight

inch

N(21℃)

Kg/m

1060TAB-K330

83.8

3.29

1890

500

130

2.13

1050/1060 Series machined drive sprocket

Machined Sprockets	Teeth	PD(mm)	OD(mm)	D(mm)
1-1050/1060-11-20	11	90.16	92.16	20 25 30 35
1-1050/1060-16-20	16	130.2	132.2	25 30 35 35

Suitable for a variety of environment to transport line body, the highest temperature can reach 120℃.
Good wear-resisting effect, suitable for long time load, vibration absorption and noise reduction during operation.
Other structures can be pursued.

1050/1060 Corner Tracks

Machined Sprockets	R	W	T
1050/1060-K325-R500-100-1	1500	100
1050/1060-K325-R500-185-2		185	85
1050/1060-K325-R500-270-3		270
1050/1060-K325-R500-355-4		355

Advantage

It is suitable for multi-section turning conveying line of can, box frame, film wrap and other products.
Hook foot limit, smooth operation.
Hinged pin shaft connection, can increase or decrease the chain joint.
