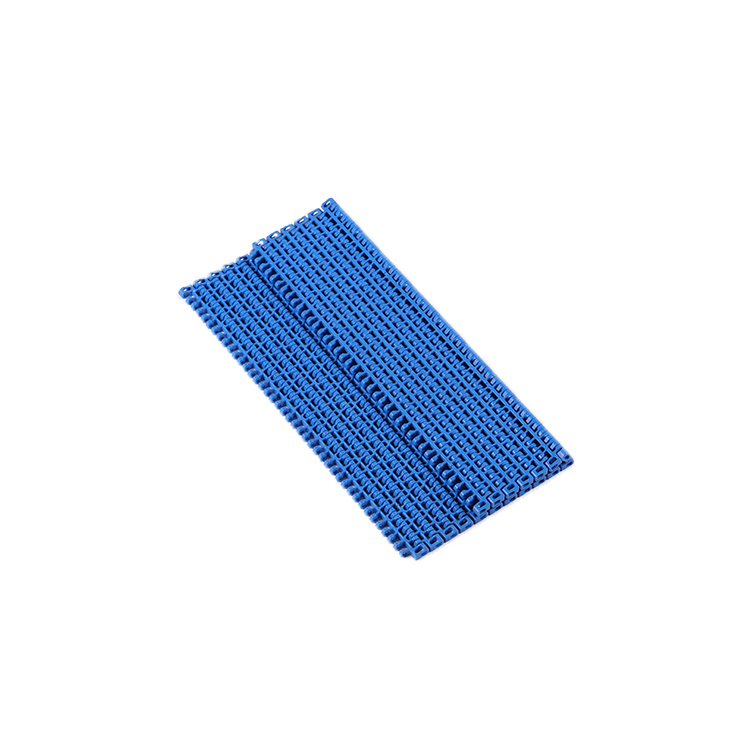

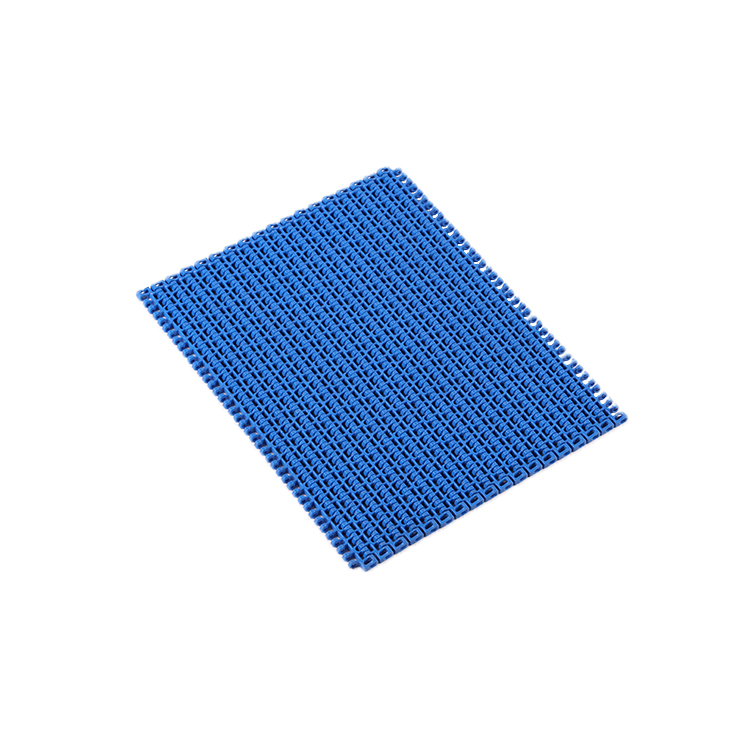

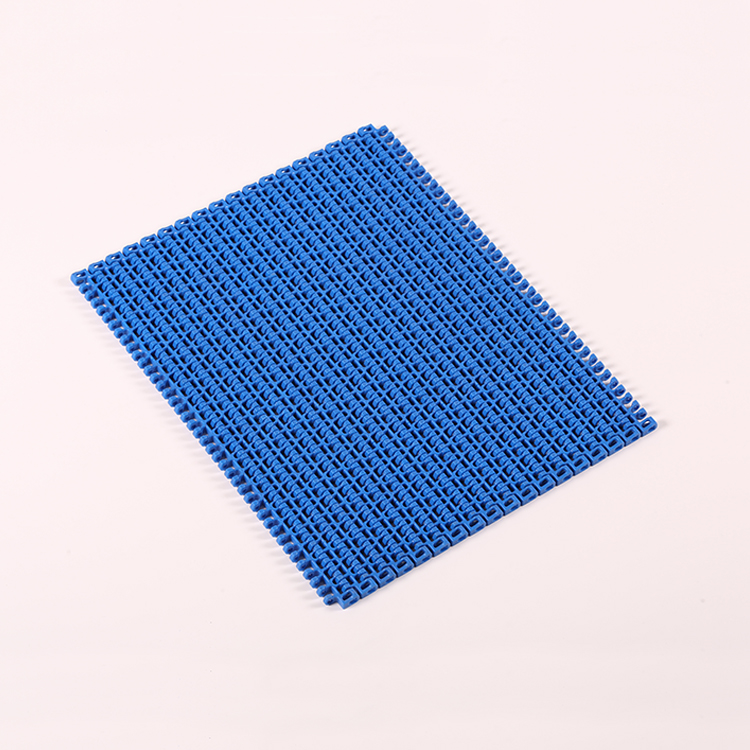

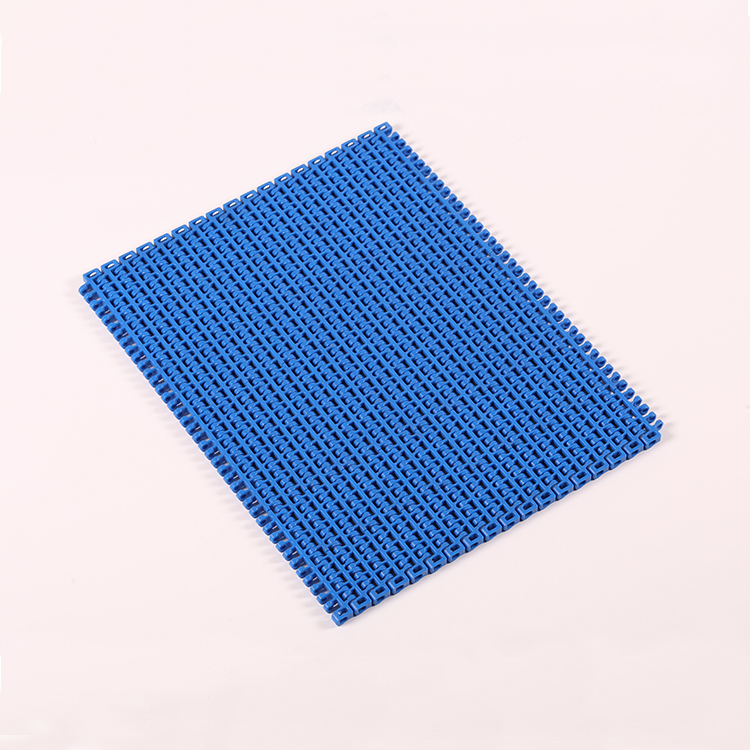

1100 Flush Grid Plastic Modular Conveyor Belt

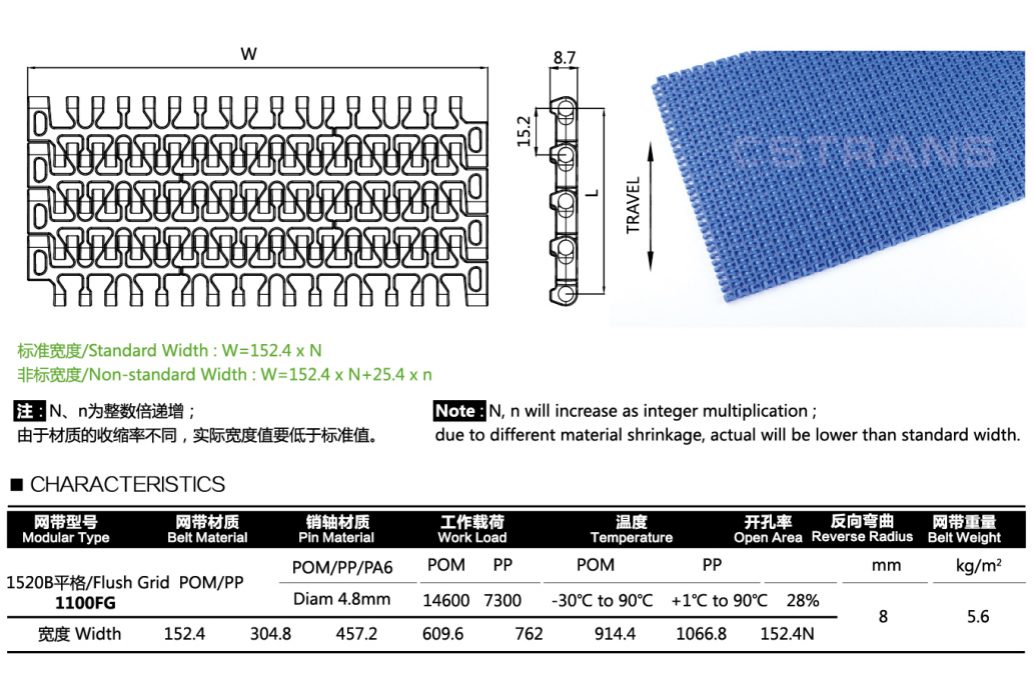

Parameter
|
Modular Type |
1100FG |
|
Standard Width(mm) |
152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N |
|
Non-Standard Width |
152.4*N+25.4*n |
|
Pitch(mm) |
15.2 |
|
Belt Material |
POM/PP |
|
Pin Material |
POM/PP/PA6 |
|
Pin Diameter |
4.8mm |
|
Work Load |
POM:14600 PP:7300 |
|
Temperature |
POM:-30C°~ 90C° PP:+1C°~90C° |
|
Open Area |
28% |
|
Reverse Radius(mm) |
8 |
|
Belt Weight(kg/㎡) |
5.6 |
1100 Injection Moulded Sprockets
| Injection Moulded Sprockets | Teeth |
Pitch Diametet(mm) |
Outside Diameter |
Bore Size |
Other Type |
||
| mm | Inch | mm | Inch | mm | Available
On request By Machined |
||
|
3-1520-16T |
16 |
75.89 |
2.98 |
79 | 3.11 | 25 30 | |
|
3-1520-24T |
24 |
116.5 |
4.58 |
118.2 | 4.65 | 25 30 35 40*40 | |
|
3-1520-32T |
32 |
155 |
6.10 |
157.7 | 6.20 | 30 60*60 | |
Application
1. Beverage filling industry
2. Food processing industry
3. Bakery
4. General production line and packaging line
Advantage
1.Easy to clean
2.Easy to maintence
3.High temperature resistance
4.Wear resistance and oil resistant
5. Reliable quality
6.Reliable after-sale service
7.Excellent performance
8.Color optional
