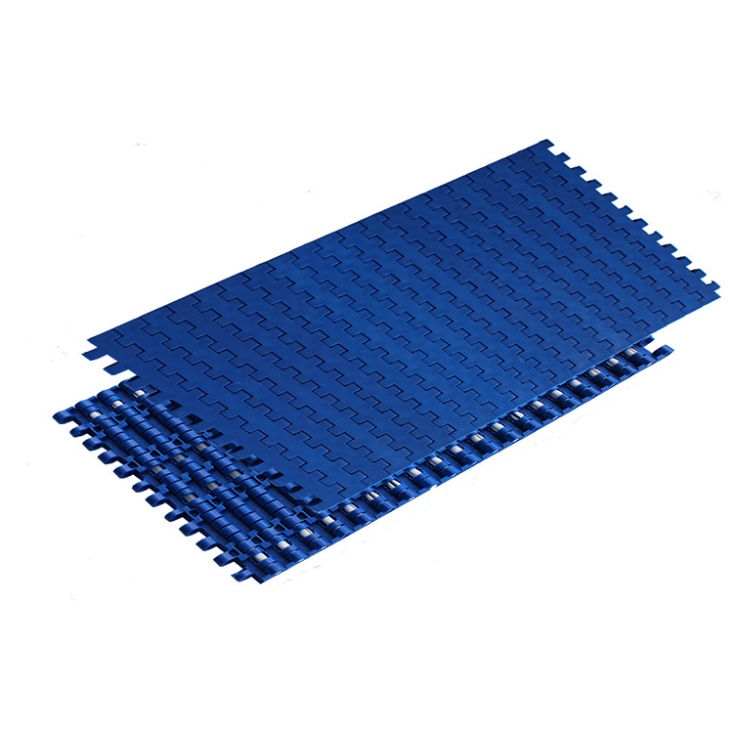

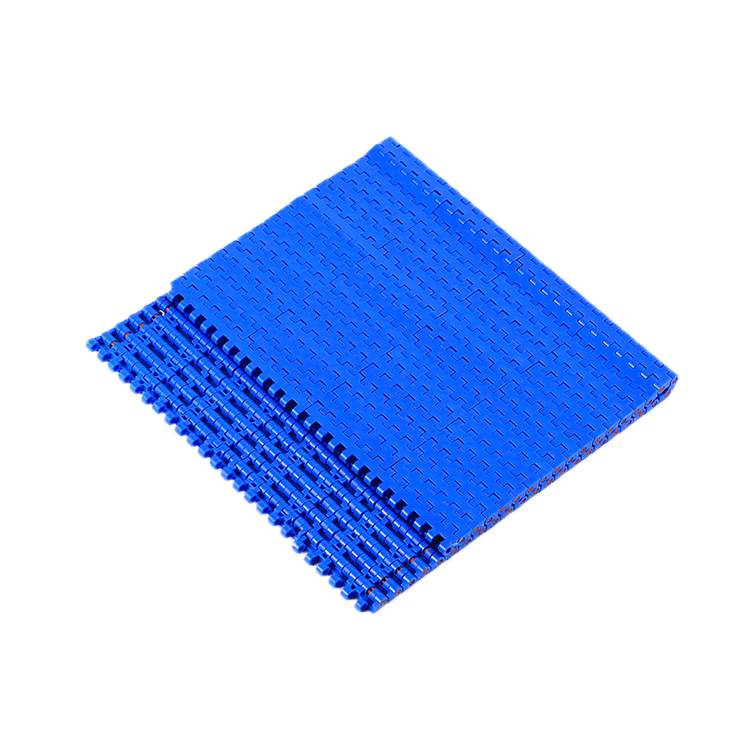

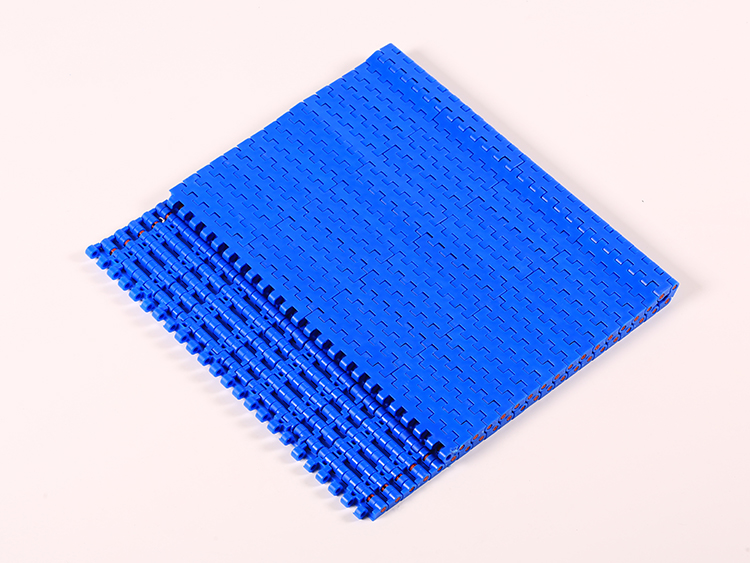

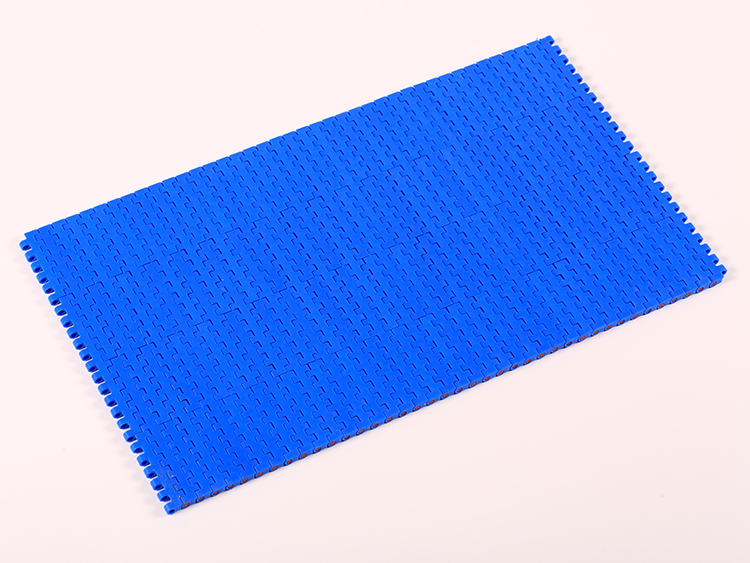

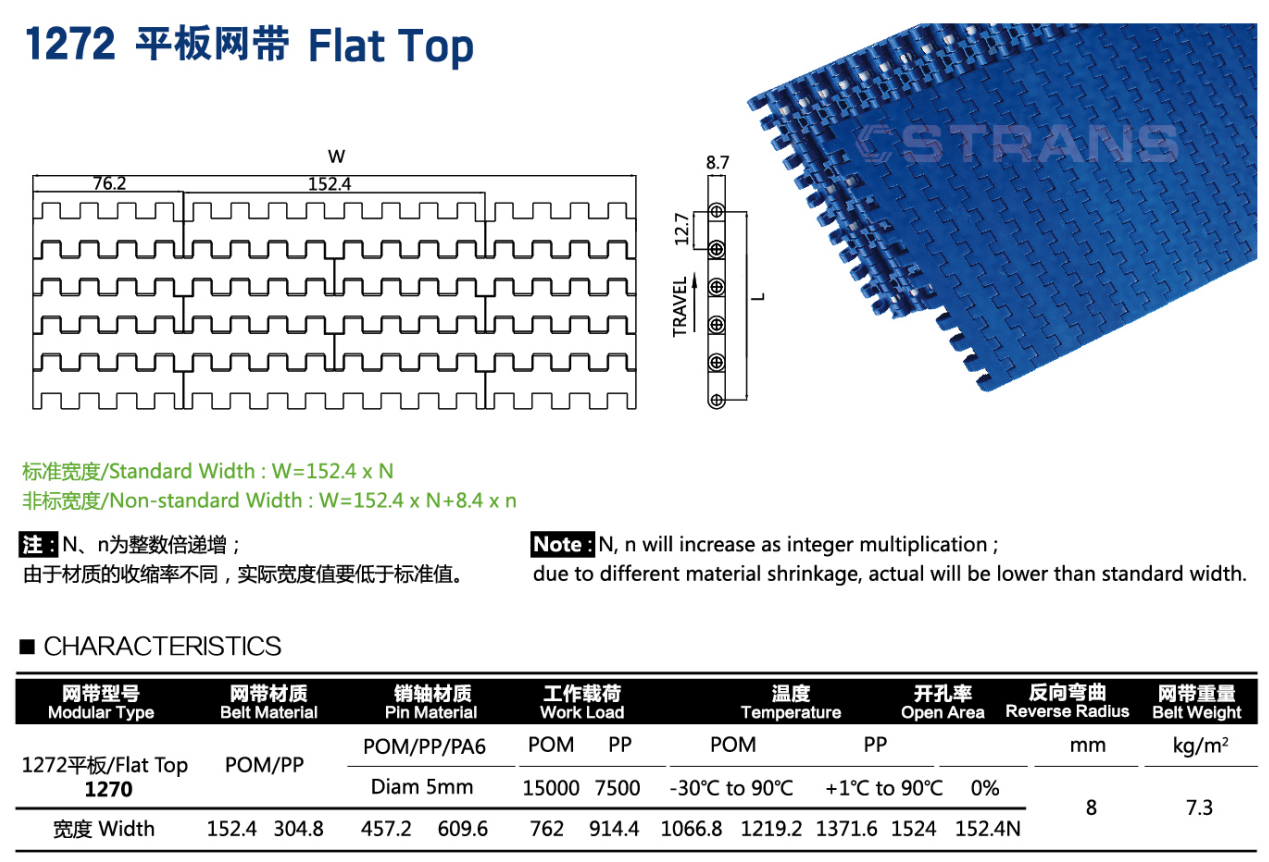

1270 Flat Top Plastic Modular Conveyor Belt
Parameter
|
Modular Type |
1270 Flat Top |
|
|
Standard Width(mm) |
152.4 304.8 457.2 609.6 762 914.4 1066.8 1219.2 1371.6 152.4N
|
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
|
Non-standard Width |
W=152.4*N+8.4*n |
|
|
Pitch(mm) |
12.7 |
|
|
Belt Material |
POM/PP |
|
|
Pin Material |
POM/PP/PA6 |
|
|
Pin Diameter |
5mm |
|
|
Work Load |
POM:15000 PP:7500 |
|
|
Temperature |
POM:-30C°~ 90C° PP:+1C°~90C° |
|
|
Open Area |
0% |
|
|
Reverse Radius(mm) |
8 |
|
|
Belt Weight(kg/㎡) |
7.3 |
|

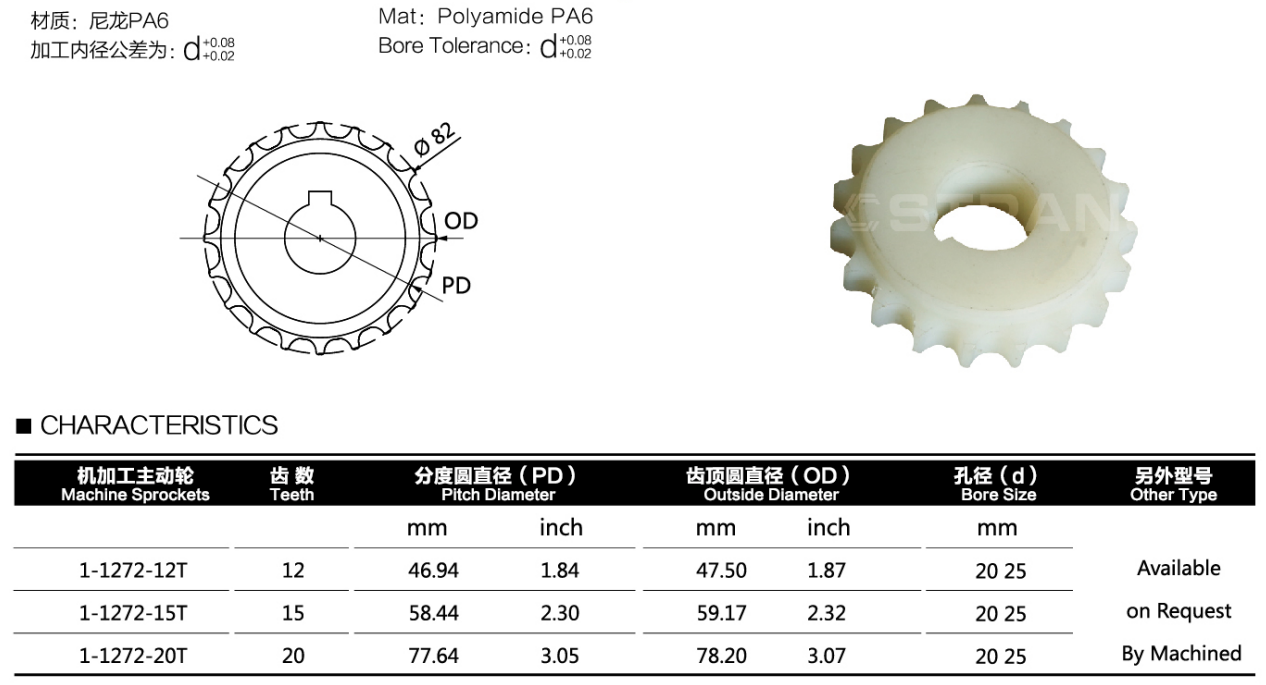

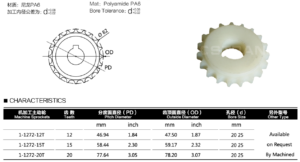

1270 Machined Sprockets
| Machine
Sprockets |
Teeth | Pitch Diameter | Outside Diamter(mm) | Bore Size | Other Type | ||
| mm | inch | mm | inch | mm |
Available on Request By Machined |
||
| 1-1272-12T | 12 | 46.94 | 1.84 | 47.50 | 1.87 | 20 25 | |
| 1-1272-15T | 15 | 58.44 | 2.30 | 59.17 | 2.32 | 20 25 | |
| 1-1272-20T | 20 | 77.64 | 3.05 | 78.20 | 3.07 | 20 25 | |
Application
1.Conveying line and packaging line for bread and dough
2.Meet packing line
3.Metal detection conveyor line
4.Seafood sorting and weighting conveyor line
5.Beverage production line
6.Other industries.
Advantages
1.Easy to maintain and assembly
2.Can bear High mechanical strength
3.High performance
4.Wear resistance and Oil Resistant
5.Have own factory.Not a trading company
6.Customization is available
7.Provide good after-sale service
Physical and chemical properties
Acid and alkali resistance (PP) :
1270 flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic electricity:
The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity. Products with resistance values greater than 10E12Ω are insulation products, which are prone to static electricity and cannot be discharged by themselves.
Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear. Wear per unit area in unit time at a certain grinding speed under a certain load;
Corrosion resistance:
The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
