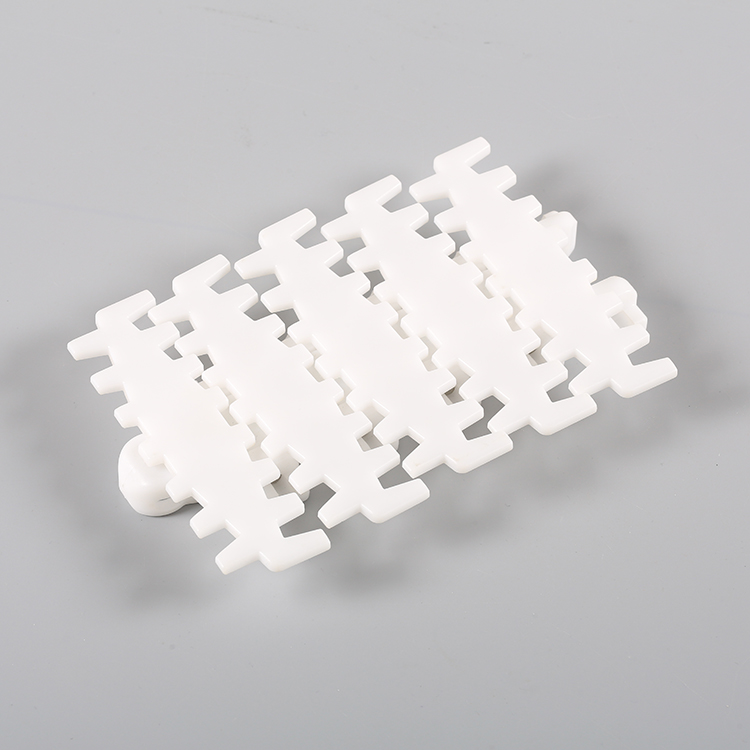

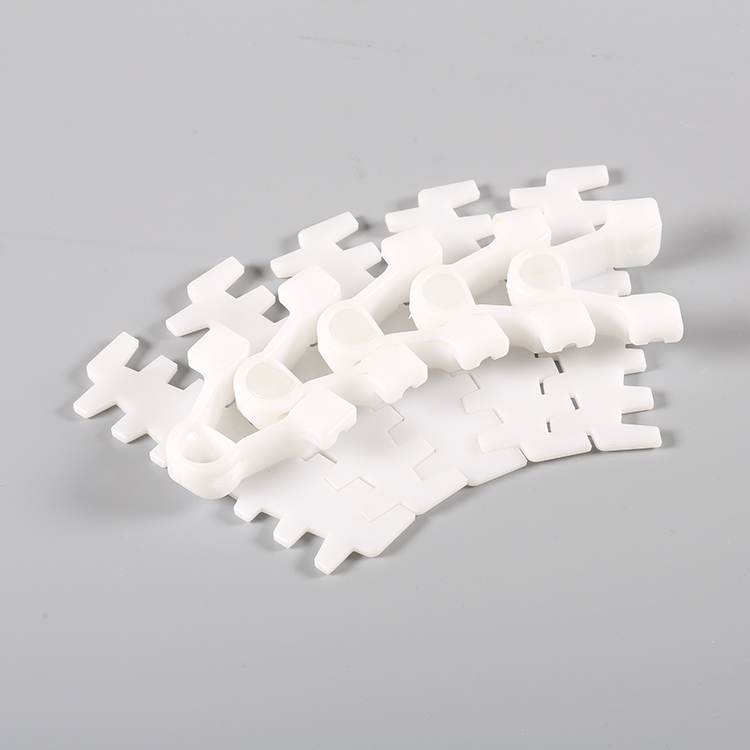

140 flexible plain plastic chains

Short Description:

CSTRANS flexible chains are capable of making sharp radius bends in either the horizontal or the vertical plains with very low friction and low noise.
  • Operation temperature: -10-+40℃
  • Allowed max speed: 50m/min
  • The longest distance: 12M
  • Pitch: 33.5mm
  • Width: 140mm
  • Pin material: Stainless steel
  • Plate material: POM
  • Packing: 10 feet=3.048 M/box 30pcs/M

    • Product Detail

    Product Tags

    Parameter

    SAF (1)
    Chain Type Plate Width Working Load Back Radius

    (min)

    		 Backflex Radius(min) Weight
      mm N(21℃) mm mm Kg/m
    140series 140 2100 40 200 1.68

    140 Machine Sprockets

    SAF (2)
    Machine Sprockets Teeth Pitch Diameter Outside Diameter Center Bore
    1-140-9-20 9 109.8 115.0 20 25 30
    1-140-11-20 11 133.3 138.0 20 25 30
    1-140-13-25 13 156.9 168.0 25 30 35

    Application

    Food and beverage

    Pet bottles

    Toilet papers

    Cosmetics

    Tobacco manufacturing

    Bearings

    Mechanical parts

    Aluminum can.

    140-3-1

    Advantages

    140-3-2

    Suitable for the occasion of medium load strength, stable operation.
    The connecting structure makes the conveyor chain more flexible, and the same power can achieve multiple steering.
    It is divided into two kinds: tooth shape and plate type.
    The tooth shape can achieve a very small turning radius.
    The surface can be attached with friction strips, the arrangement of anti-skid spacing is different, the effect is different.
    The Angle and environment will affect the lifting effect of the conveyor.
