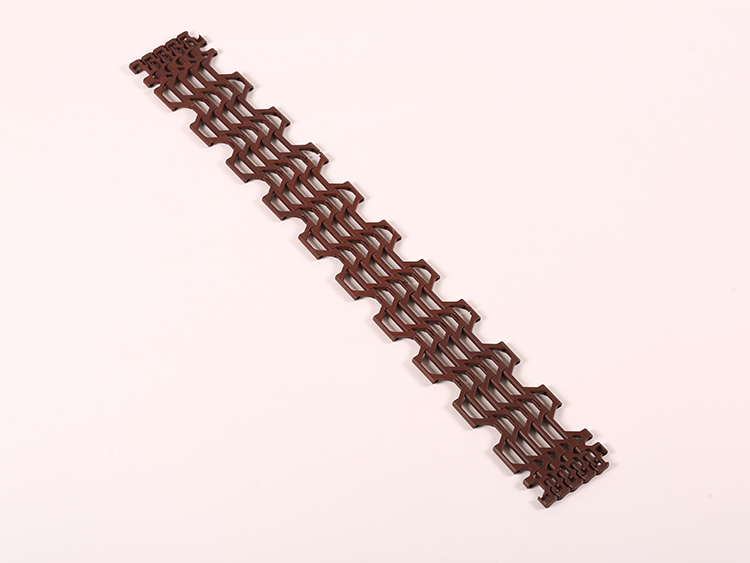

1500 Flush Grid Modular Plastic Conveyor Belt

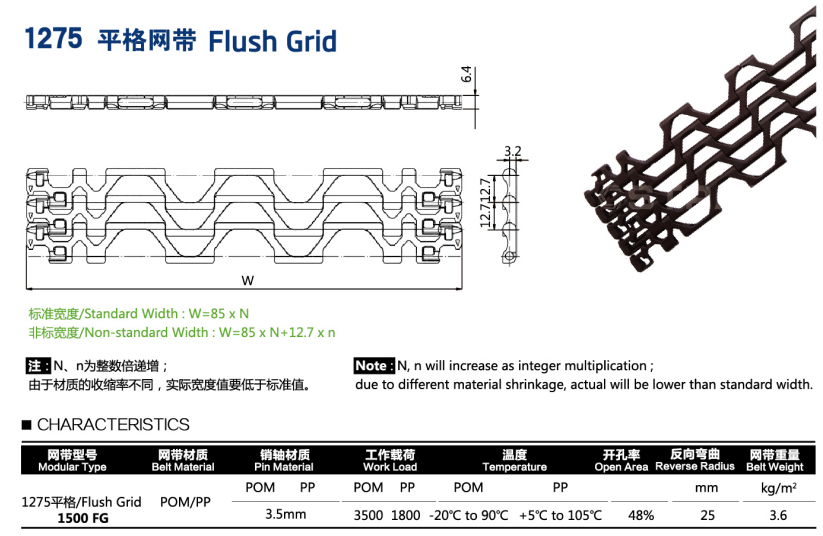

Parameter
|
Modular Type |
1500 FG |
|
|
Standard Width(mm) |
85*N
|
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
|
Non-standard Width |
W=85*N+12.7*n |
|
|
Pitch(mm) |
12.7 |
|
|
Belt Material |
POM/PP |
|
|
Pin Material |
POM/PP |
|
|
Pin Diameter |
3.5mm |
|
|
Work Load |
POM:3500 PP:1800 |
|
|
Temperature |
POM:-20C°~ 90C° PP:+5C°~105C° |
|
|
Open Area |
48% |
|
|
Reverse Radius(mm) |
25 |
|
|
Belt Weight(kg/㎡) |
3.6 |
|
Application
1.Fruit and vegetable industry
2.Meat, poultry and seafood industry
3.Other industries
Advantages
1.Long life ,the cost of replacement is lower than traditional conveyor belt
2.Low cost for maintaince .
3.Easy to clean.
4.Eash to assemble
5. high temperature resistance, cold resistance and oil resistance
6. Avoid bacterial reproduction, especially suitable for food industry applications.
7.Not only can provide qualified product but also offer good after-sales service.
8.Both standard and customization size are available.
9.We have own factory ,not trade company.
Physical and chemical properties
Acid and alkali resistance (PP) :
1500 flat grid belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic electricity:
The product whose resistance value is less than 10E11 ohms is an antistatic product. The better antistatic electricity product is a product whose resistance value is 10E6 ohms to 10E9 Ohms. Because the resistance value is low, the product can conduct electricity and discharge static electricity. Products with resistance values greater than 10E12Ω are insulation products, which are prone to static electricity and cannot be discharged by themselves.
Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear. Wear per unit area in unit time at a certain grinding speed under a certain load;
Corrosion resistance:
The ability of metal materials to resist the corrosive action of surrounding media is called corrosion resistance.
