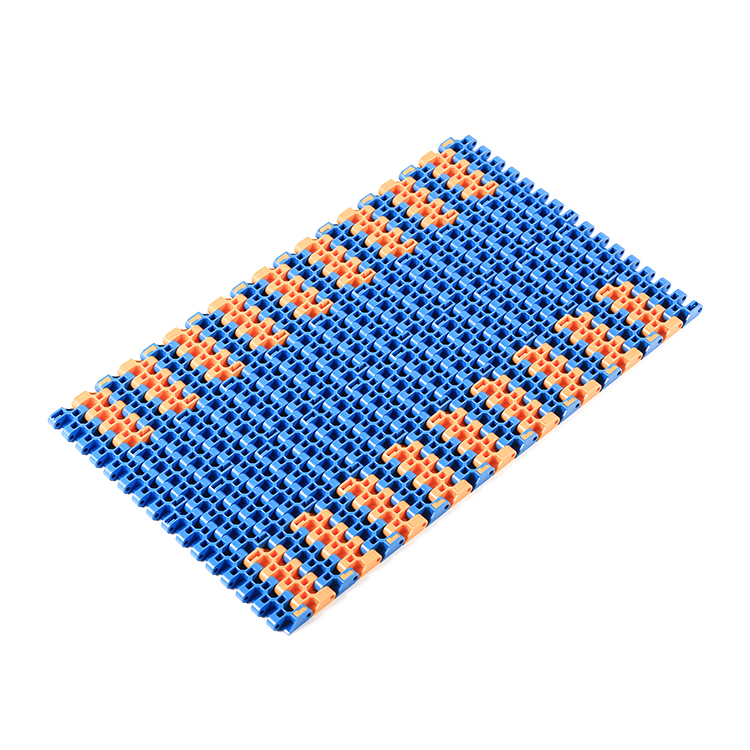

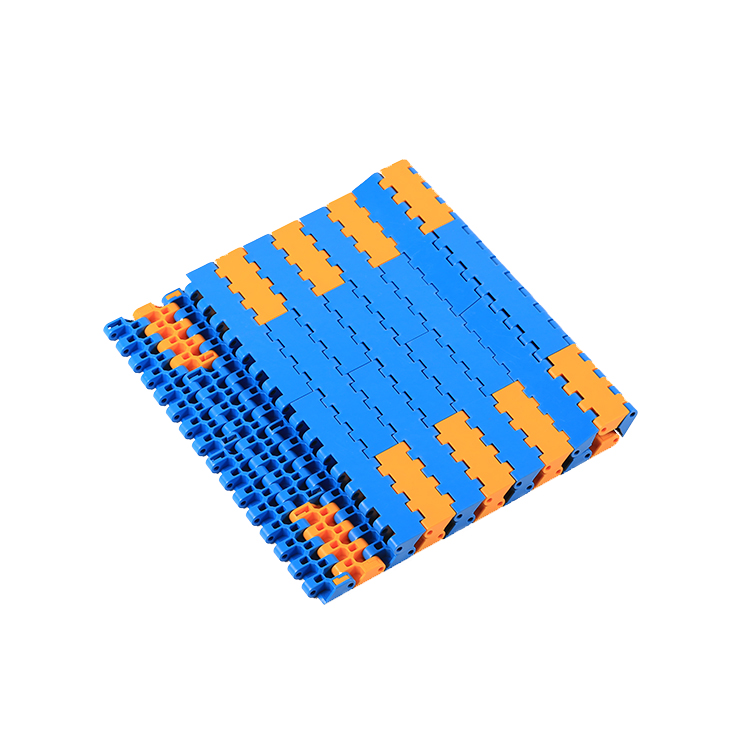

2520 top modular plastic conveyor belt

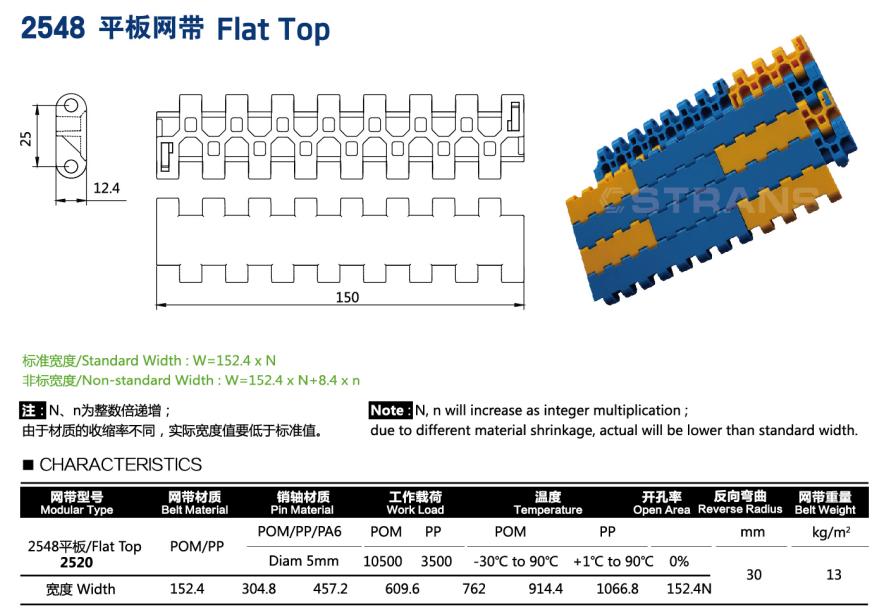

Parameters
| Modular Type | 2520 | |
| Standard Width(mm) | 75 150 225 300 375 450 525 600 675 750 75N |
(N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
| Non-standard Width | 75*N+8.4*n | |
| Pitch(mm) | 25.4 | |
| Belt Material | POM/PP | |
| Pin Material | POM/PP/PA6 | |
| Pin Diameter | 5mm | |
| Work Load | POM:10500 PP:3500 | |
| Temperature | POM:-30°~ 90° PP:+1°~90° | |
| Open Area | 0% | |
| Reverse Radius(mm) | 30 | |
| Belt Weight(kg/㎡) | 13 | |
Application Industries
1. Beverage
2. Beer
3. Food
4. Tire industry
5. Battery
6. Carton Industry
7. Bakey
8. Fruit and vegetable
9. Meat poultry
10. Seefood
11. Other industries.
Advantage
1. Standard size and customization size both available
2. High strength and high load capacity
3. High stability
4. Easy to clean and wash down with water
5. Can apply in wet or dry products
6. Cold or hot products can be transported
Physical and chemical properties
Acid and alkali resistance (PP) :
2520 flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity;
Antistatic: Antistatic products whose resistance value is less than 10E11Ω are antistatic products. Good antistatic products whose resistance value is 10E6 to 10E9Ω are conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.
Wear resistance:
Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load;
Corrosion resistance:
The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
Features and characteristics
Smooth.The surface is not easy to deform, high temperature resistance, corrosion resistance, low noise, Light weight, non - magnetic, anti - static, etc.
High temperature resistance, tensile strength, long life and other characteristics; Widely used in food industry, tire and rubber conveyor industry,Daily chemical industry, paper industry, beverage manufacturing workshop, in different working environments.
