3873-R /L side flexing plastic conveyor chain with base bearing Featured Image
  • 3873-R /L side flexing plastic conveyor chain with base bearing
  • 3873-R /L side flexing plastic conveyor chain with base bearing

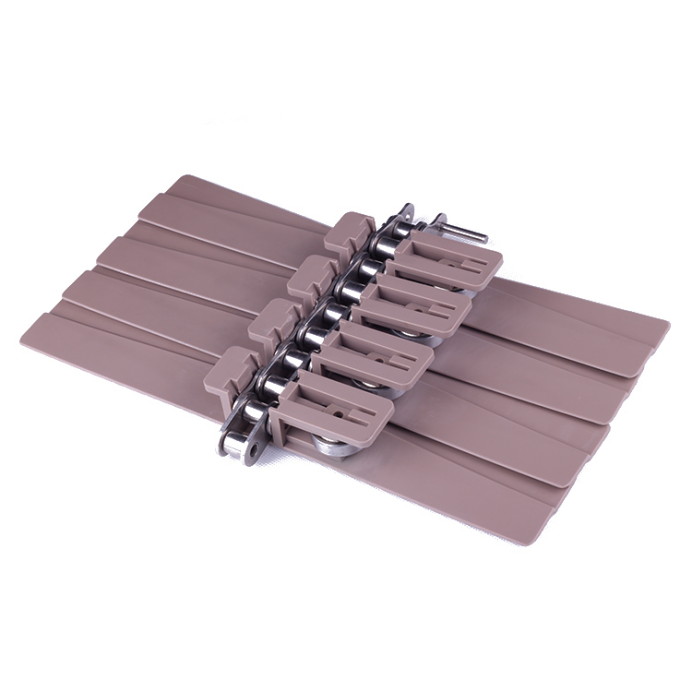

3873-R /L side flexing plastic conveyor chain with base bearing

Short Description:

With base bearing, this side flexing plastic conveyor chain can turn right side or left side.
Mainly used for high-speed long-distance curve conveyors, such as food industry, dish conveying.
Consist of metal chain and plastic chain.
  • Plate material: POM
  • Bottom chain: carbon steel or stainless steel
  • Roller plates chains: Standard 12A Roller Chains.
  • The longest distance: carbon steel-30m，Stainless steel--24m
  • Max speed: Dryness 25M/min

    • Product Detail

    Product Tags

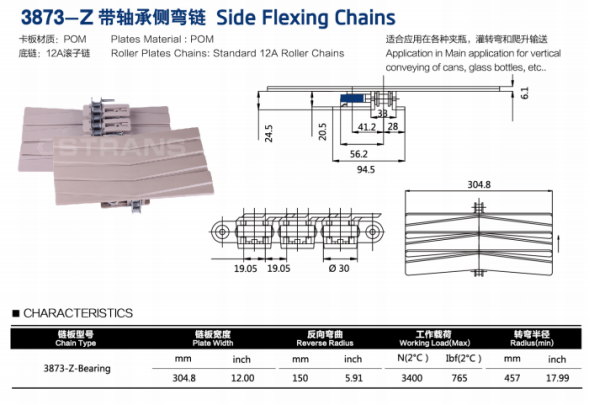

    Parameter

    3873-R /L side flexing plastic conveyor chain with base bearing
    Chain Type Plate Width Reverse Radius Radius (min) Work load(Max)
    3873-Z-Bearing mm inch mm inch mm inch N
    304.8 12 150 5.91 457 17.99 3400

    Features

    1. Easy installation and maintenance
    2. High mechanical strength and wear resistance
    3. No gaps between parallel chains
    4. Excellent product handling
    5. Special design with metal chain and plastic conveyor chain
    6. Suitable for long-distance high speed Curve Conveyors

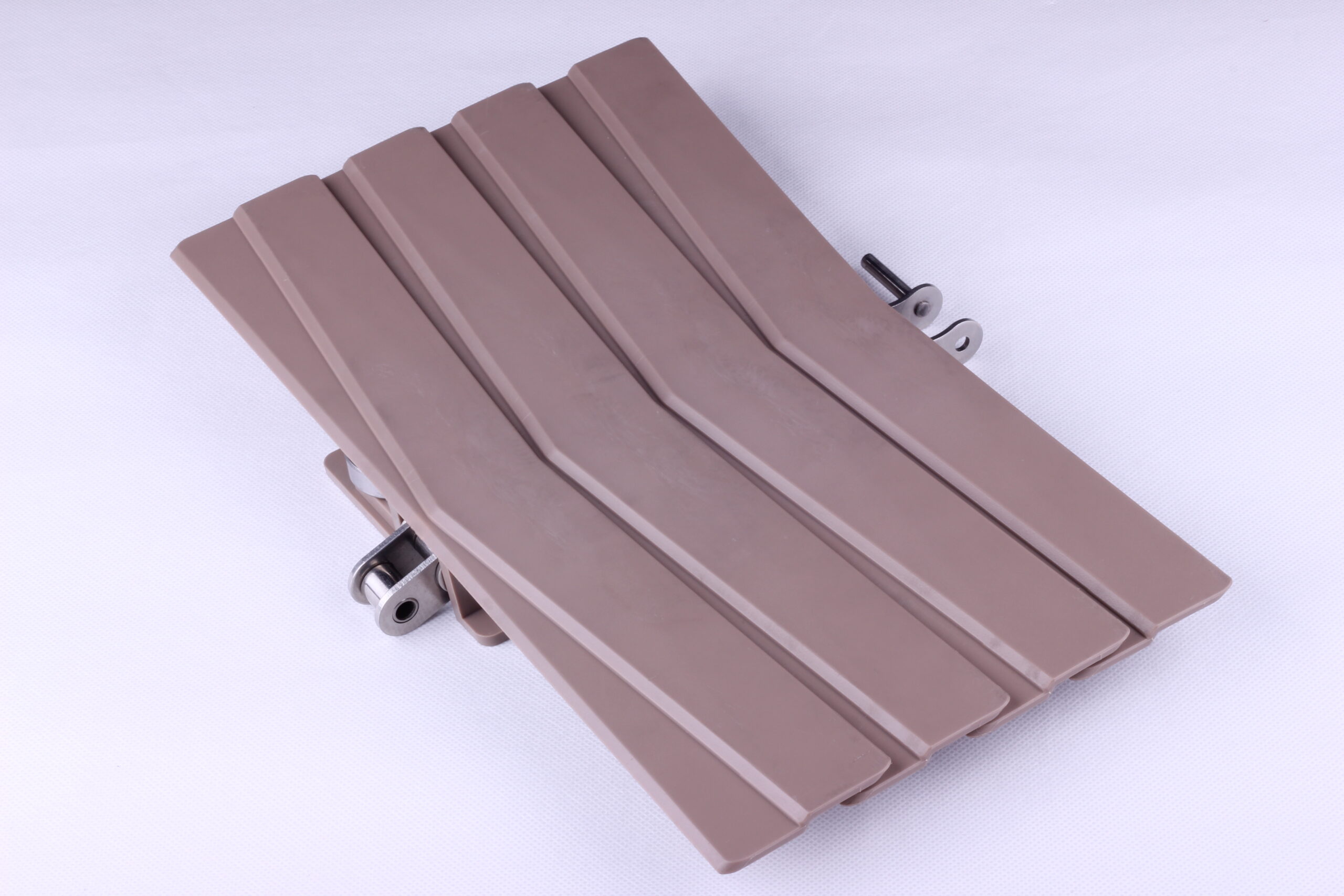

    照片 002

    Advantages

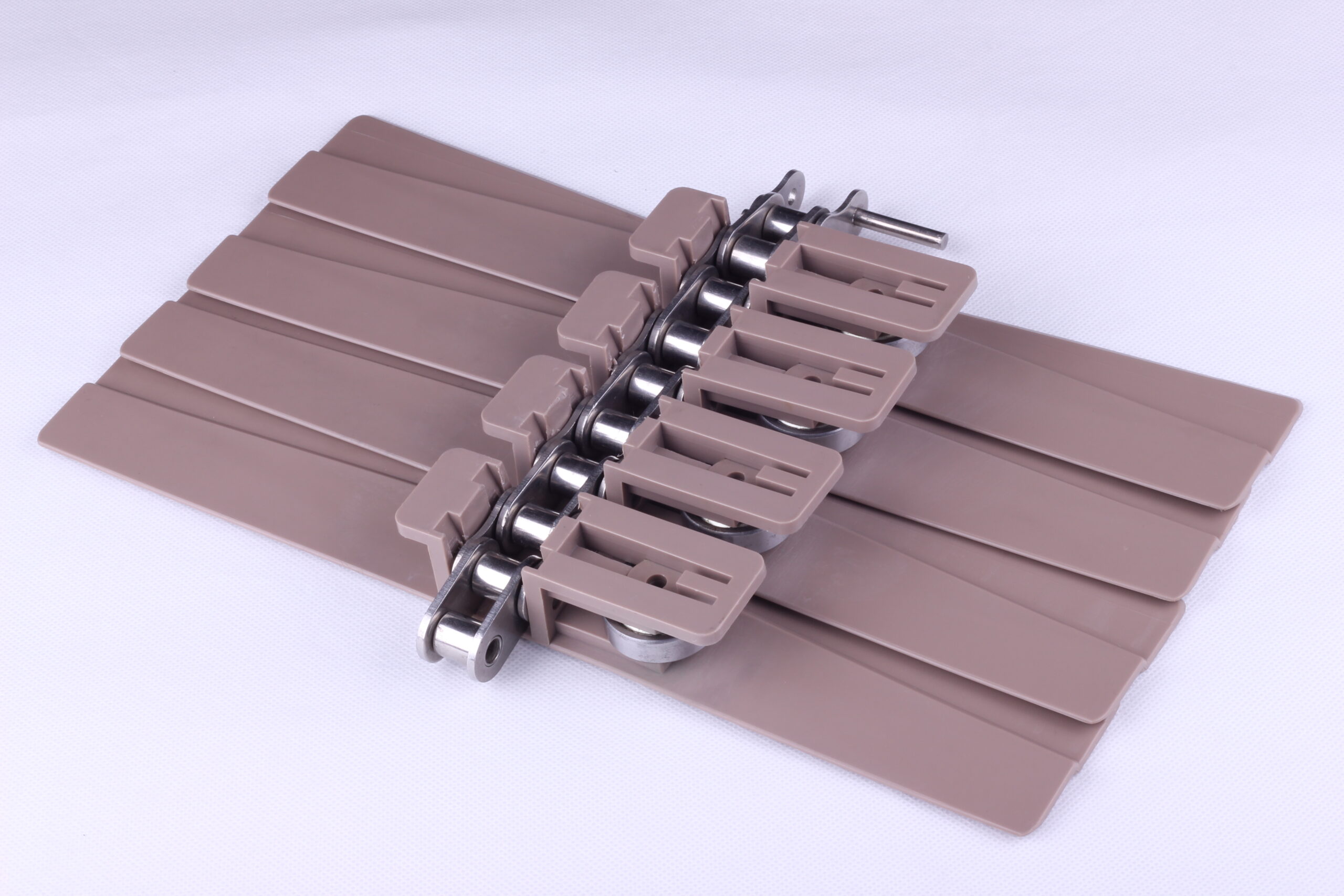

    照片 003

    Suitable for pallet, box frame, membrane and other turning conveying.
    Metal bottom chain is suitable for heavy load and long distance transportation.
    The chain plate body is clamped on the chain for easy replacement.
    The above speed is under the condition of turning transportation, and the linear transportation condition is less than 60 meters/min.
