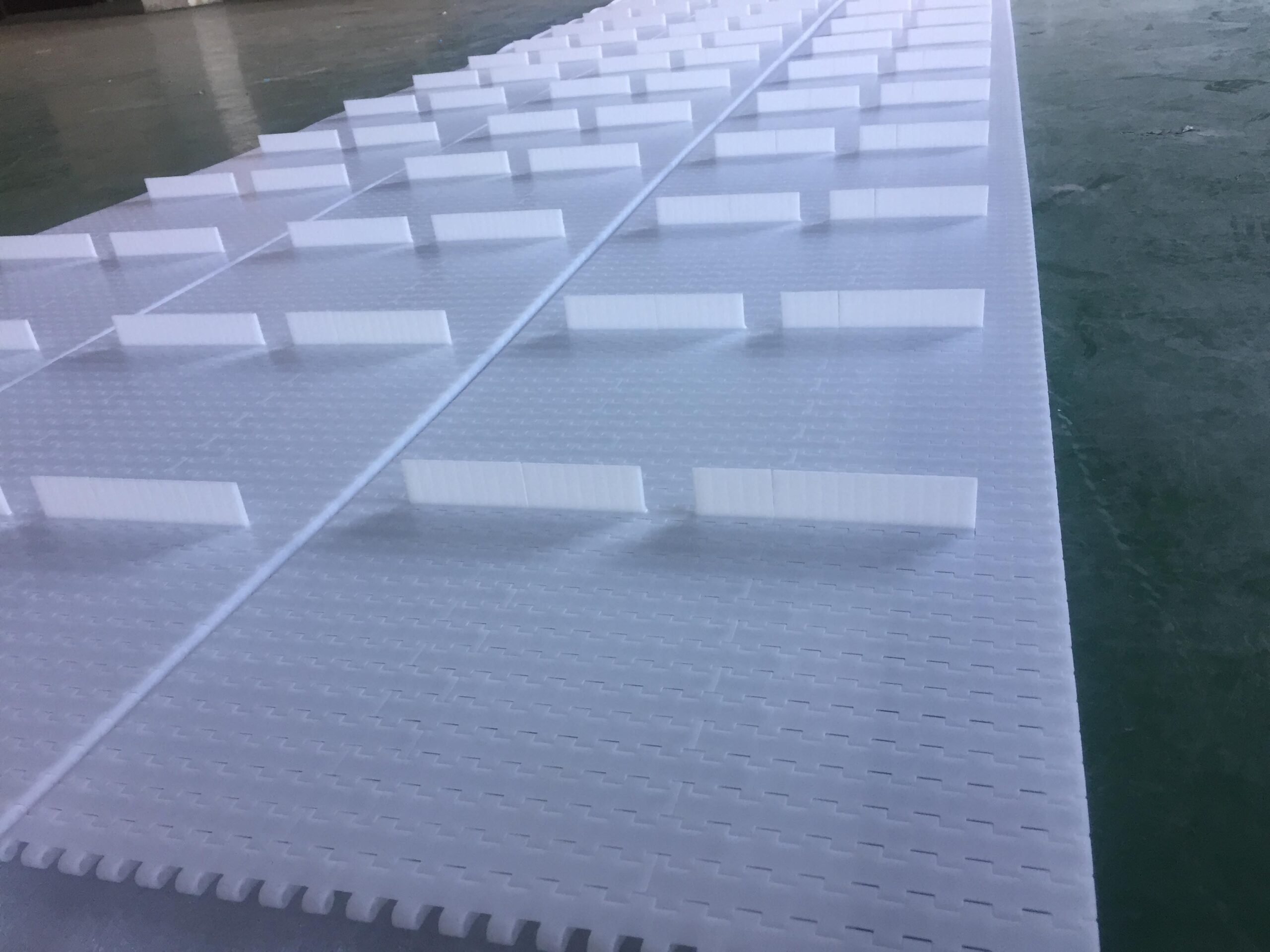

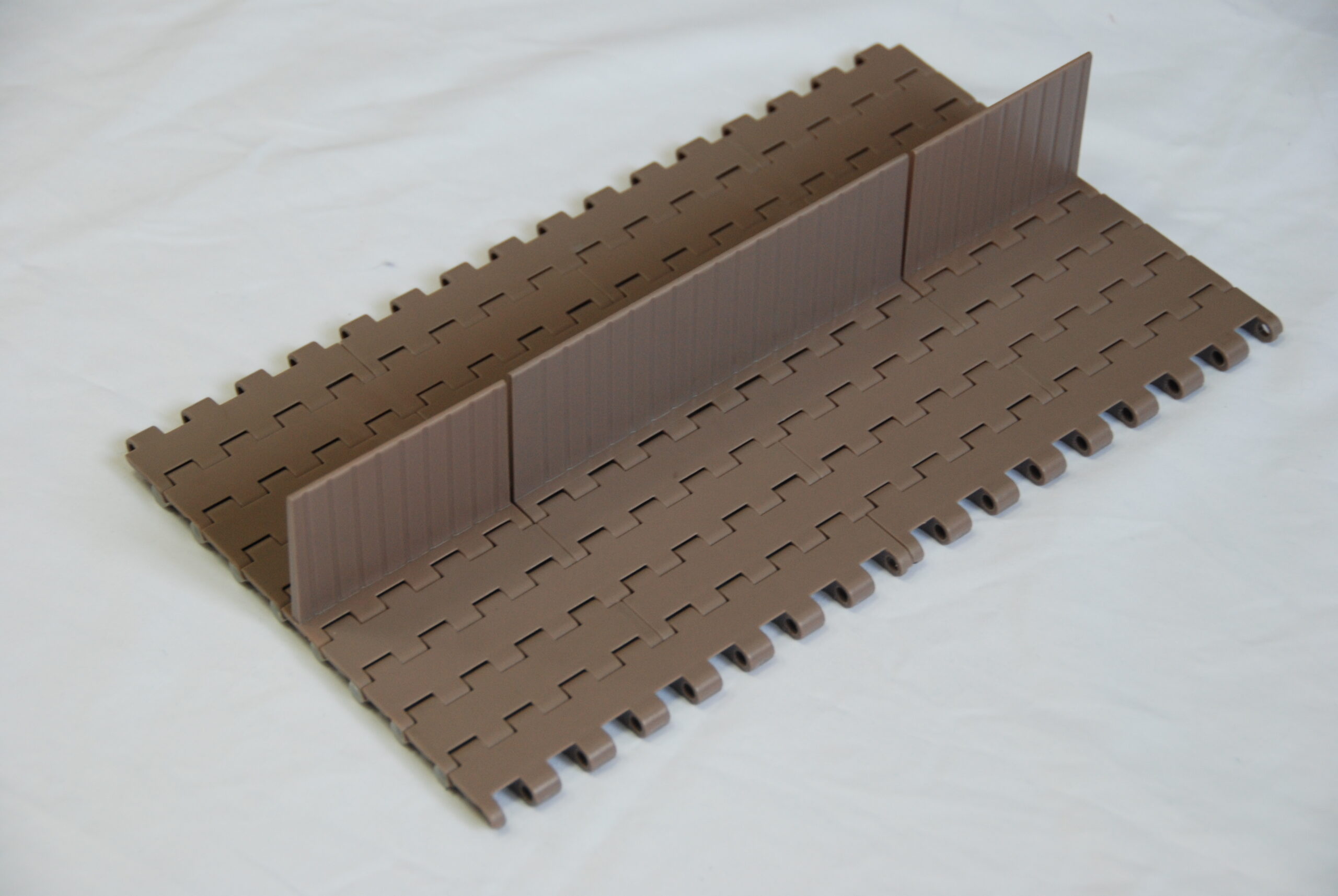

5935 Modular Plastic Conveyor Belt With Flight
Parameter
|
Modular Type |
5935 Flight |
|
|
Standard Width(mm) |
76.2 152.4 228.6 304.8 381 457.2 833.4 609.6 685.8 762 76.2*N | Note:N·n will increase as integer multiplication:due to different material shrinkage,actual will be lower than standard width |
|
Non Standard Width(mm) |
76.2*N+19*n |
|
|
Pitch(mm) |
19.05 |
|
|
Flight Material |
POM/PP |
|
|
Flight Height |
20 25 30 35 40 50 |
|

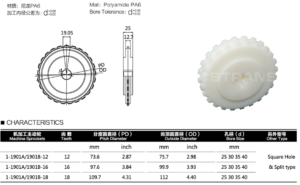

5935 Machined Sprockets
| Machined Sprockets | Teeth |
Pitch Diametet(mm) |
Outside Diameter |
Bore Size |
Other Type |
||
| mm | Inch | mm | Inch | mm |
Available on request By Machined |
||
| 1-1901A/1901B-12 |
12 |
73.6 |
2.87 |
75.7 | 2.98 | 20 30 35 40 | |
| 1-1901A/1901B-16 |
16 |
97.6 |
3.84 |
99.9 | 3.93 | 20 30 35 40 | |
| 1-1901A/1901B-18 |
18 |
109.7 |
4.31 |
112 | 4.40 | 20 30 35 40 | |
Application
1.Spare and accessory parts
2.Injection molding system packaging machine
3. Bottle cap conveying
4.Other industries
Advantage
1.Widely usage
2.Small space occupy
3.Low maintaince cost ,Huge volume conveying
4.Easy operation
5.High efficient
6.Solve the problem that the common conveyor belt and the pattern conveyor belt cannot be dip angle conveying
7.Can be vertical plane, horizontal plane, slightly deflected and multi-angle direction conveying
8.Easy to clean
9.Customization is available
10.Plant direct sale
