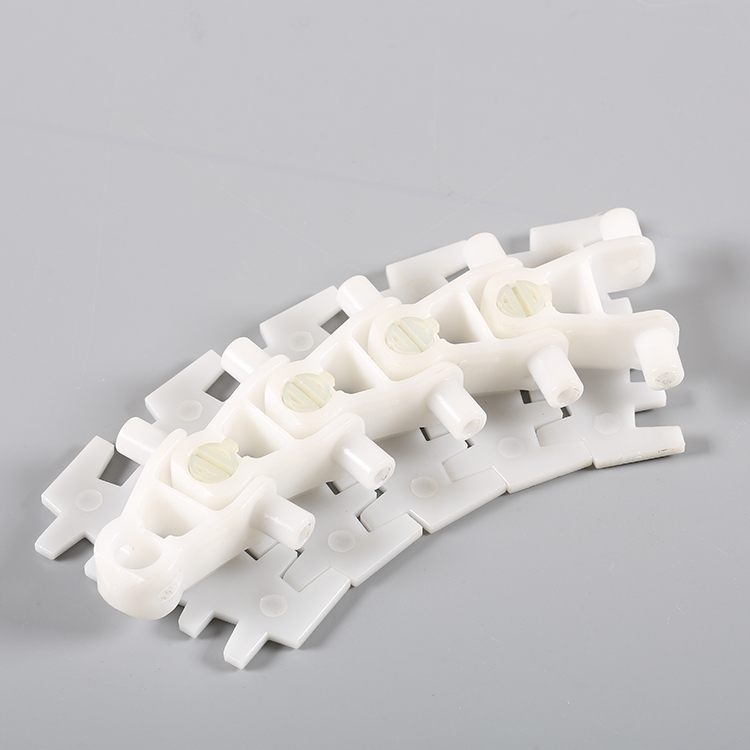

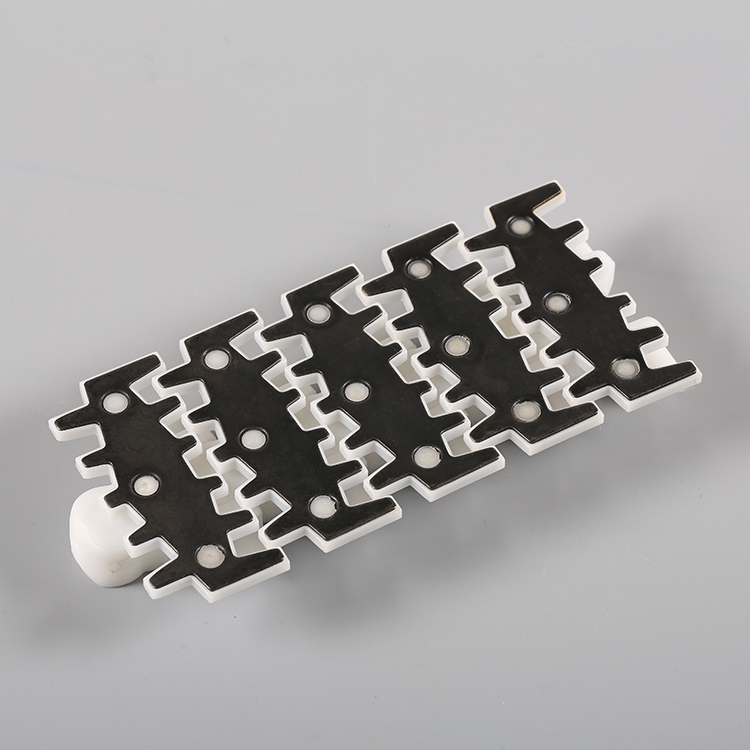

63B steel top flexible plain chains

Short Description:

CSTRANS flexible chains are capable of making sharp radius bends in either the horizontal or the vertical plains with very low friction and low noise.

Operation temperature: -10-+40℃

Allowed max speed: 50m/min

The longest distance: 12M

Pitch: 25.4mm

Width: 63mm

Pin material: Stainless steel

Steel plate: Sus 304

Plate material: POM

Packing: 10 feet=3.048 M/box 40pcs

Send email to us

Product Detail

Product Tags

Parameter

Chain Type

Plate Width

Working Load

Back Radius

(min)

Backflex Radius(min)

Weight

inch

N(21℃)

Kg/m

63A

63.0

2.50

2100

150

1.15

63 Machine Sprockets

Machine Sprockets	Teeth	Pitch Diameter	Outside Diameter	Center Bore
1-63-8-20	8	66.31	66.6	20 25 30 35
1-63-9-20	9	74.26	74.6	20 25 30 35
1-63-10-20	10	82.2	82.5	20 25 30 35
1-63-11-20	11	90.16	90.5	20 25 30 35
1-63-16-20	16	130.2	130.7	20 25 30 35 40

Application

Food and beverage

Pet bottles,

Toilet papers,

Cosmetics,

Tobacco manufacturing

Bearings,

Mechanical parts,

Aluminum can.

Advantage

These chains used in a variety of industries including manufacturing, assembly, and packaging, for example, cosmetics, foodstuffs, paper, eletrical and Electronic sectors, mechanical, chemical and automotive industry.
