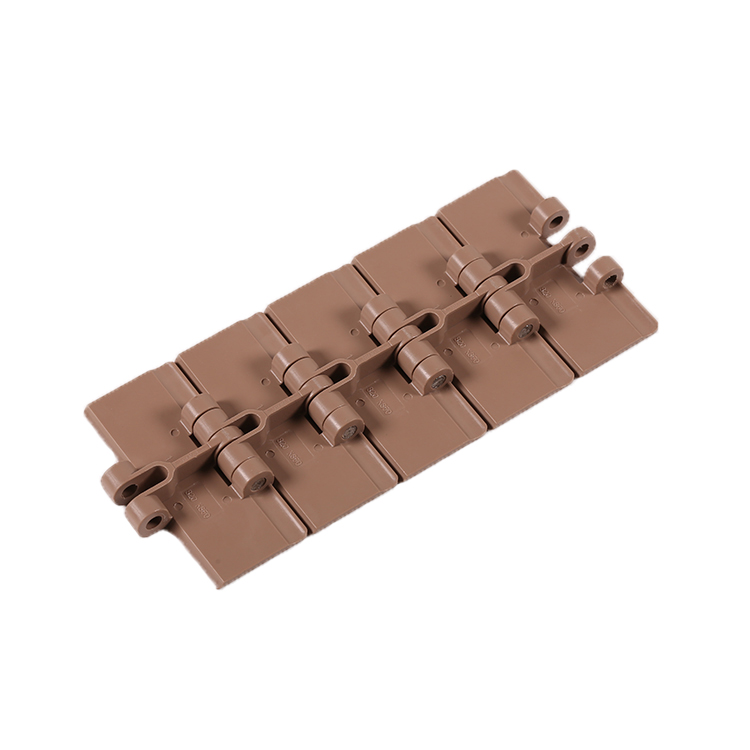

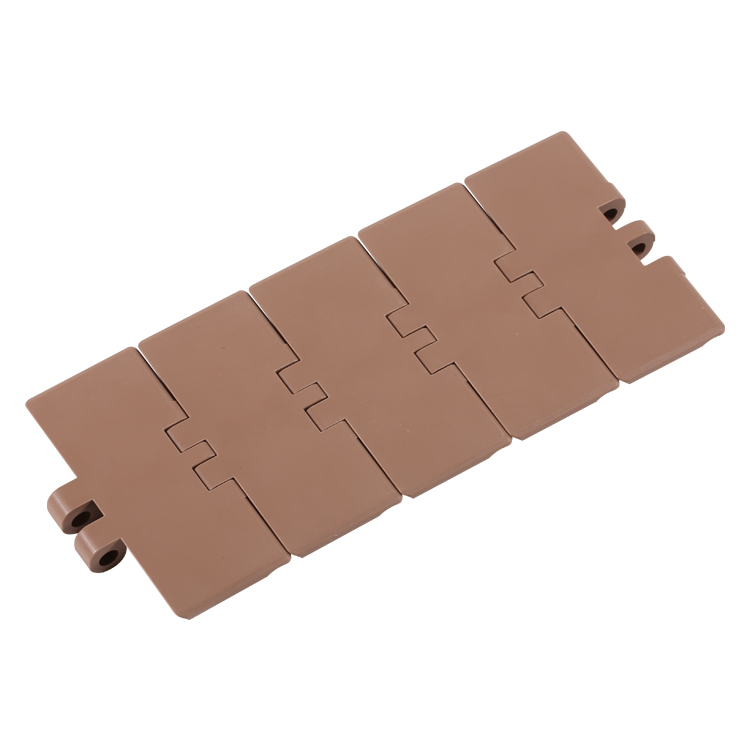

820 Single Hinge Plastic Slat Top Chain

Short Description:

Straight run: Single Hinge 820 Series
.Mainly used for all kinds of food industry,such as beverage ,bottle ,can and other conveyors.
  • The longest distance: 12M
  • Max Speed: Lubricant 90M/min
  • Max Speed: Dryness 60M/min
  • Working load: 2250N
  • Pitch: 38.1MM
  • Pin material: stainless steel
  • Plate material: POM(Temperature:-40-90°C)
  • Packing: 10 feet =3.048M/box 26pcs/M

    • Product Detail

    Product Tags

    Parameter

    Chain Type Plate Width Working Load Back Flex Radius(min) Weight
    mm inch N(21℃) Ibf(21℃) mm inch Kg/m
    820-K250 63.5 2.5 1230 276 50 1.97 0.73
    820-K325 82.6 3.25 0.83
    820-K350 88.9 3.5 0.87
    820-K400 101.6 4 0.95
    820-K450 114.3 4.5 1.03
    820-K600 152.4 6 1.25
    820-K750 190.5 7.5 1.47





    Advantage

    It is suitable for single channel or multi-channel straight transportation of bottles, cans and other products.

    The conveying line is easy to clean and install conveniently Hinged pin shaft connection, can increase or decrease the chain joint.

    820-23
    820链板450x450

    Application

    1.Food and beverage

    2.Pet bottles

    3.Toilet papers

    4.Cosmetics

    5.Tobacco manufacturing

    6.Bearings

    7.Mechanical parts

    8.Aluminum can
