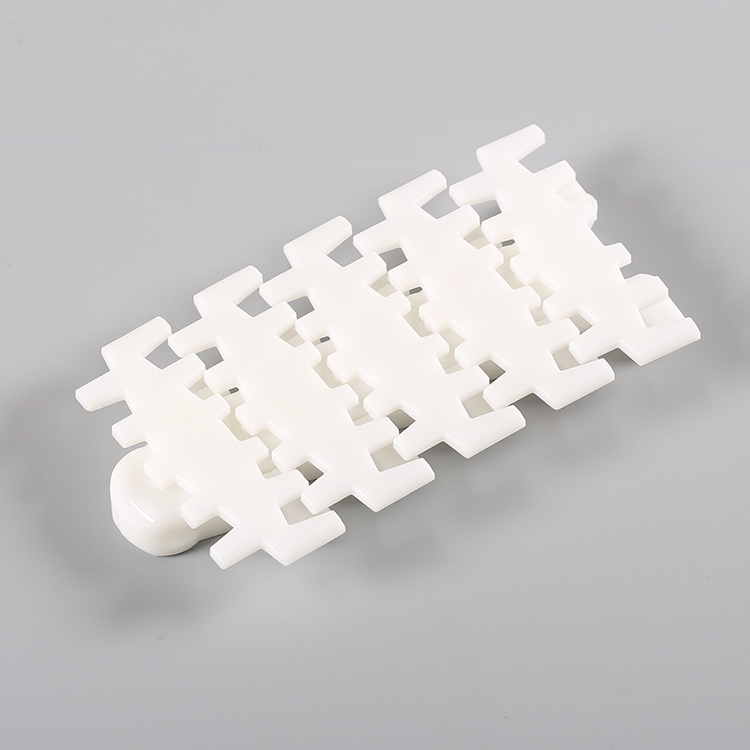

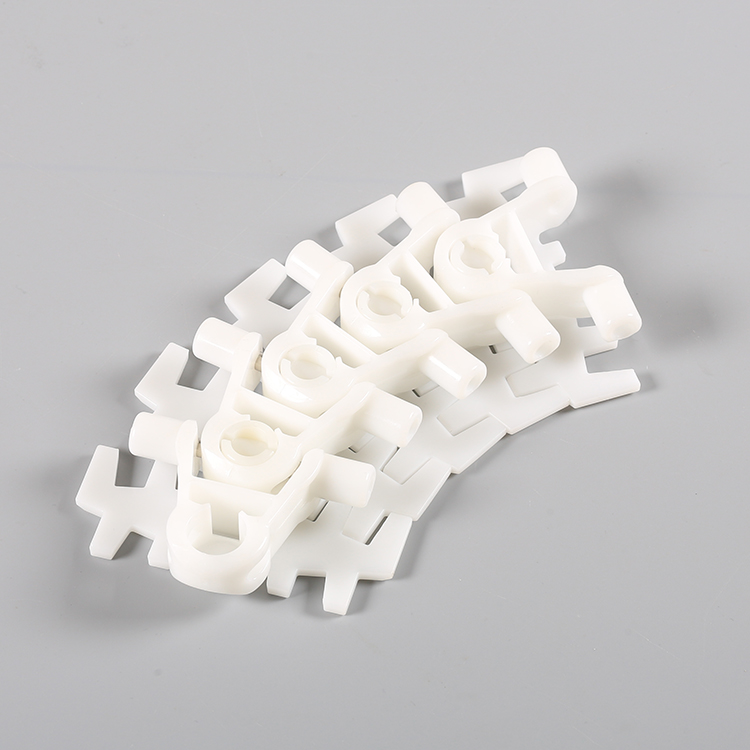

83 Plastic flexible chains

Short Description:

CSTRANS flexible chains are capable of making sharp radius bends in either the horizontal or the vertical plains with very low friction and low noise.
  • Operation temperature: -10-+40℃
  • Allowed max speed: 50m/min
  • The longest distance: 12M
  • Pitch: 33.5mm
  • Width: 83mm
  • Pin material: Stainless steel
  • Plate material: POM
  • Packing: 10 feet=3.048 M/box 30pcs/M

    • Product Detail

    Product Tags

    Parameter

    as (3)
    Chain Type Plate Width Working Load Back Radius(min) Backflex Radius(min) Weight
    mm inch N(21℃) mm mm Kg/m
    83 series 83 3.26 2100 40 160 1.3

    83 Machine Sprockets

    as (4)
    Machine Sprockets Teet Pitch Diameter Outside Diameter Center Bore
    1-83-9-20 9 97.9 100.0 20 25 30
    1-83-12-25 12 129.0 135.0 25 30 35

    83 Flexible cleat chain

    as (8)
    as (7)

    Suitable for lifting and holding delivery of snack bags and snack boxes.

    Products with irregular shape make the brush fit well.

    Select the appropriate brush distance according to the conveying size.

    The Angle and the environment will affect the lifting Angle of the conveyor.

    83 series gripper chains

    It is suitable for clamping conveying objects with regular shape and medium load strength.

    The conveying objects are clamped through the elastic deformation of the mountain block.

    When the mountain block is clamped on the chain plate, it may fall off when the deformation of the mountain block is too large.

    as (9)
    as (10)

    83 series Flat friction top chain

    as (11)
    as (12)

    Suitable for the occasion of medium load strength, stable operation.
    The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
    The tooth shape can achieve a very small turning radius.
    The surface is attached with friction plate, and the anti-skid spacing is different, so the effect is different.
    The Angle and environment will affect the lifting effect of the conveying material.

    83 series roller top chain

    It is suitable for packing and conveying of box frame, plate and other products.

    Reduce the accumulation pressure, reduce the friction resistance with the conveying objects.

    The top roller is pressed into the top of the chain plate by a metal piercing rod.

    as (13)
    as (14)

    Application

    Food and beverage, Pet bottles, Toilet papers, Cosmetics, Tobacco manufacturing, Bearings, Mechanical parts, Aluminum can.

    Advantages

    Suitable for the lifting and conveying of carton products.

    Boss is to block , according to the size of the conveyor choose the appropriate boss spacing.

    Center open hole through hole, custom bracket can be fixed.
