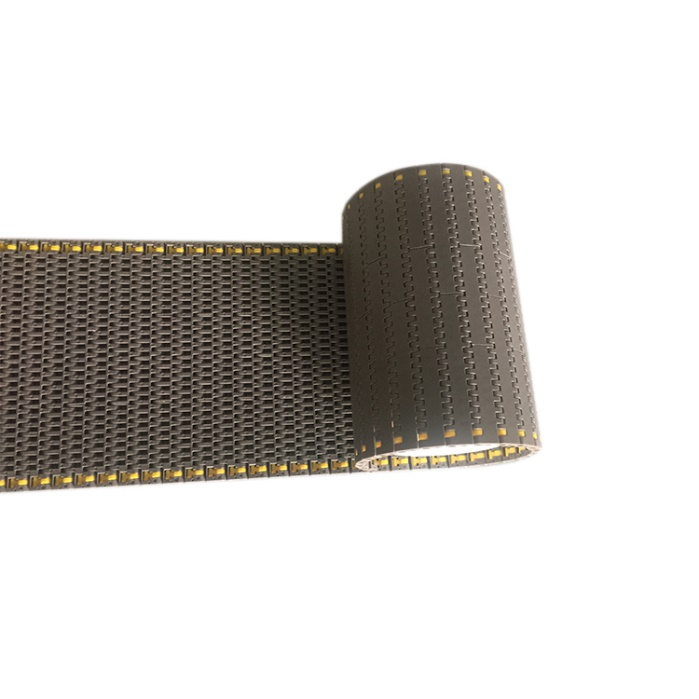

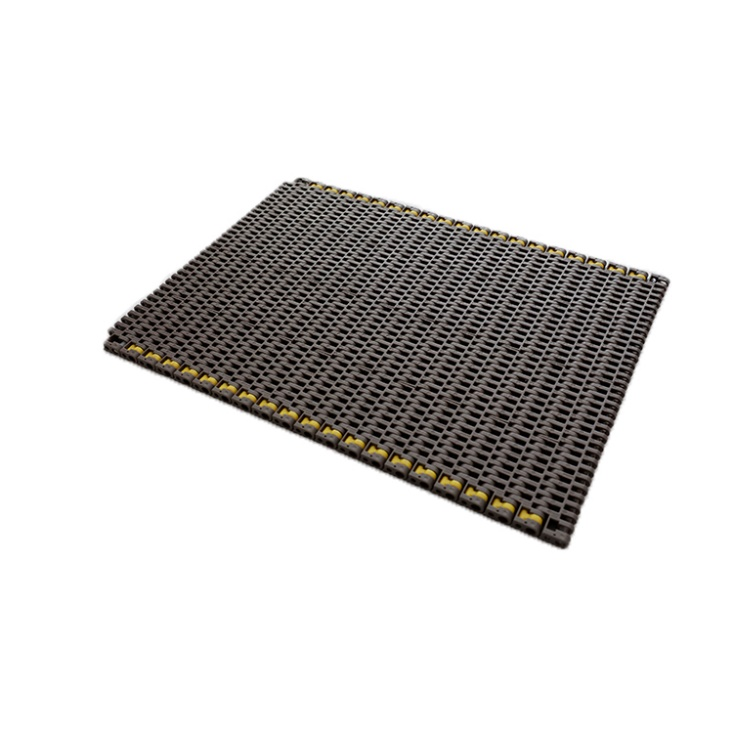

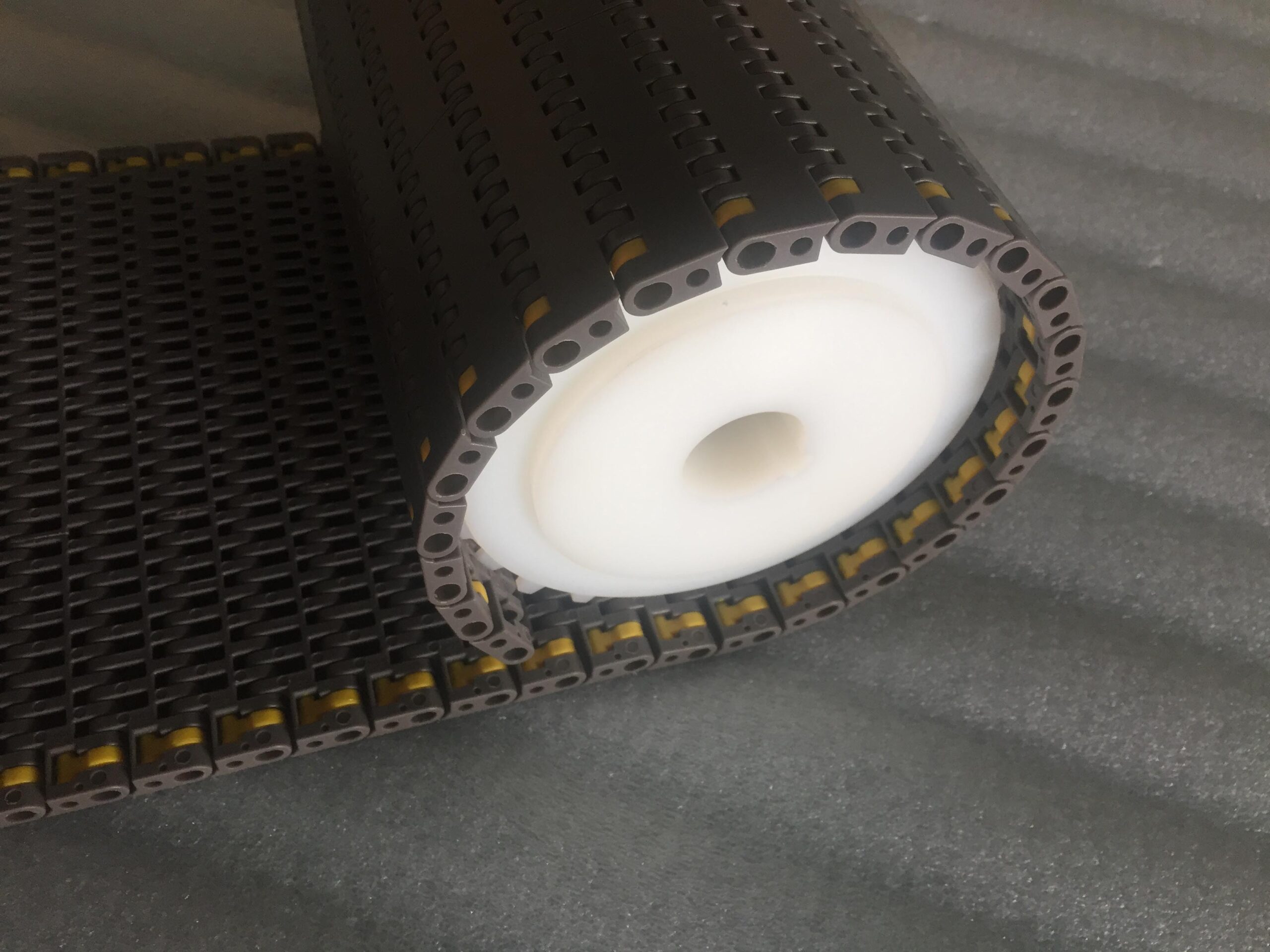

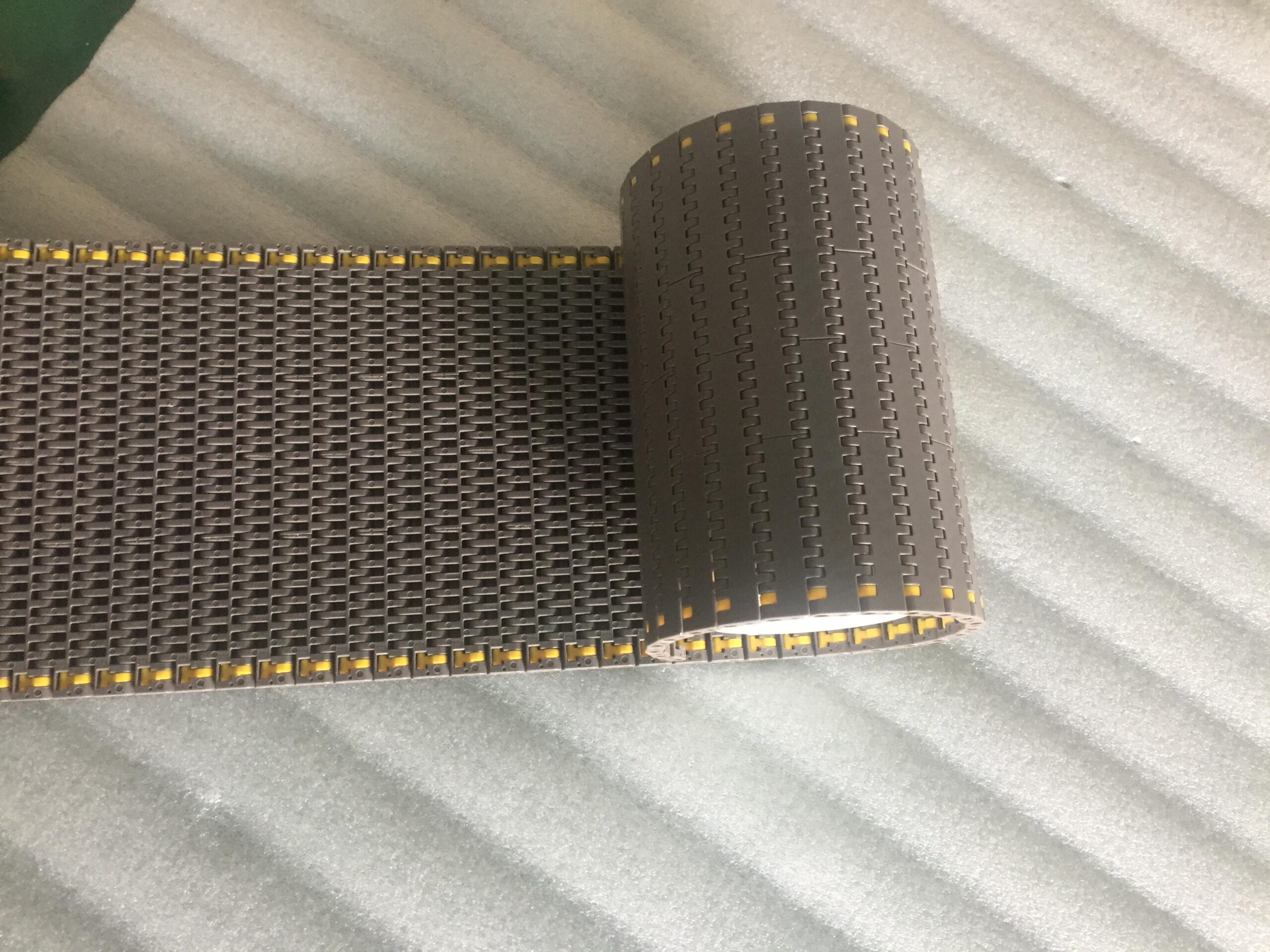

8505 Modular Plastic Flat Top Conveyor Bel

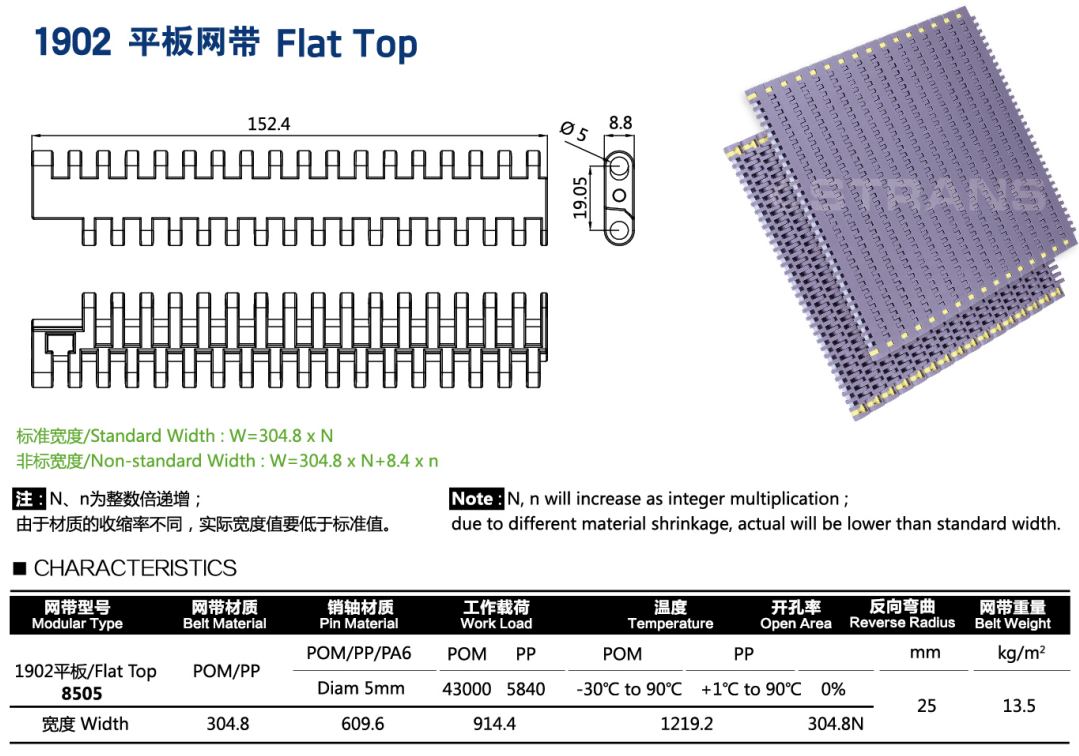

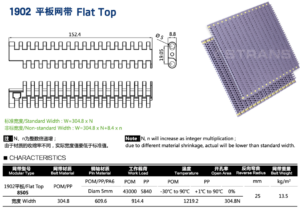

Parameter
|
Modular Type |
8505 Flat Top |
|
|
Standard Width(mm) |
304.8 609.6 914.4 1219.2 304.8*N
|
(N·n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) |
|
Non-standard Width |
W=304.8*N+8.4*n |
|
|
Pitch(mm) |
19.05 |
|
|
Belt Material |
POM/PP |
|
|
Pin Material |
POM/PP/PA6 |
|
|
Pin Diameter |
5mm |
|
|
Work Load |
POM:43000 PP:5840 |
|
|
Temperature |
POM:-30C°~ 90C° PP:+1C°~90C° |
|
|
Open Area |
0% |
|
|
Reverse Radius(mm) |
25 |
|
|
Belt Weight(kg/㎡) |
13.5 |
|

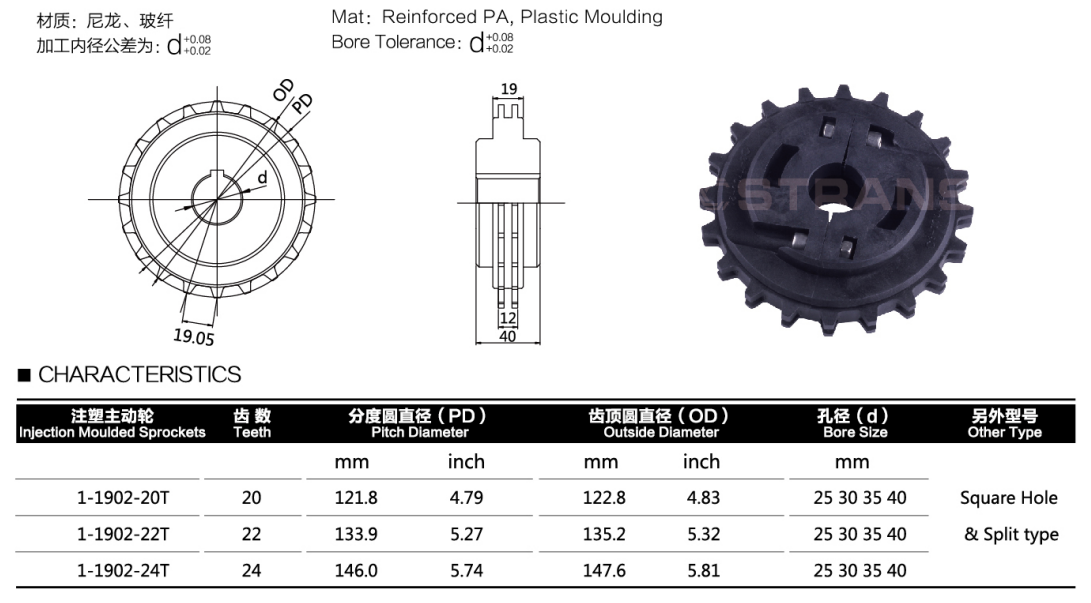

8505 Injection Moulded Sprockets
| Injection Moulded
Sprockets |
Teeth | Pitch Diameter | Outside Diamter(mm) | Bore Size | Other Type | ||
| mm | inch | mm | inch | mm |
Square Hole & Split Type |
||
| 1-1902-20T | 20 | 121.8 | 4.79 | 122.8 | 4.83 | 25 30 35 40 | |
| 1-1902-22T | 22 | 133.9 | 5.27 | 135.2 | 5.32 | 25 30 35 40 | |
| 1-1902-24T | 24 | 146.0 | 5.74 | 147.6 | 5.81 | 25 30 35 40 | |
Application
1.Food Industry
2.Beverage Industry
3.Glass and PET container
4.Pharmaceuticals
5.Electrons
6.Tobacco
7.Metal container
8.Plastic bags
9.Other industries
Advantage
1.Oil-Resistant
2.Acid And Alkali Resistant
3.Heat-Resistant
4.Cold-Resistant
5.Wear-Resistant
6.Strong tensile strength
7.High Stability
8.Easy to assembly and maintain
9.Color optional
10.Good after-sale service.
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal,polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform.
POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
