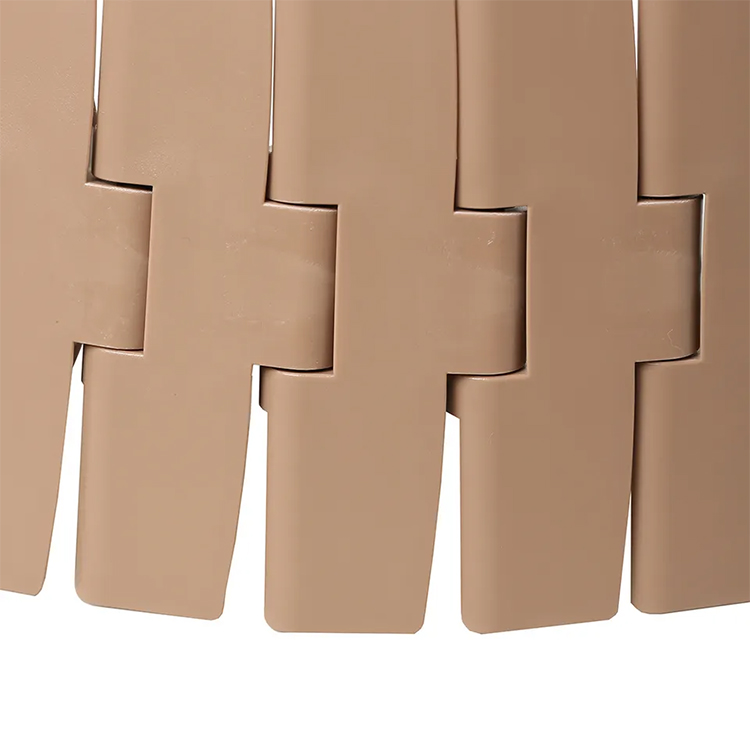

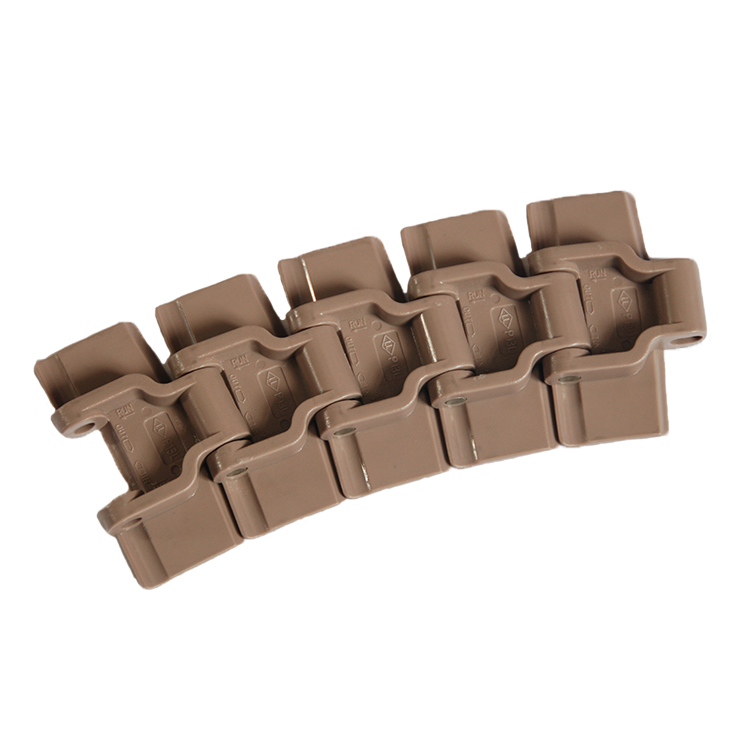

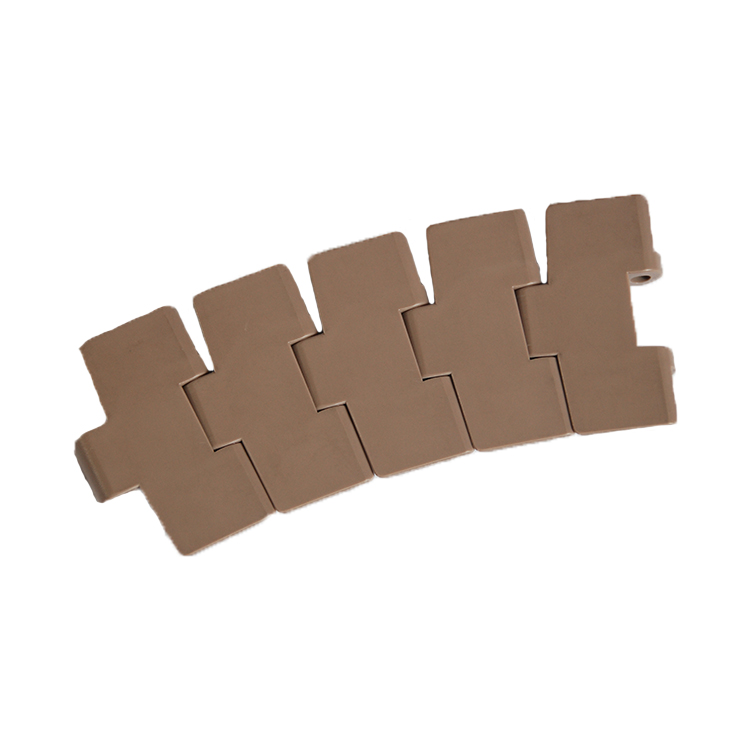

880M Magnetic Side Flexing Chains
Parameter
| Chain Type | Plate Width | Side Flex Radius | Back Flex Radius(min) | Weight | |||
| mm | inch | mm | inch | mm | inch | Kg/m | |
| 880M-K325 | 82.6 | 3.25 | 500 | 75 | 1.97 | 1.03 | |
| 880M-K450 | 114.3 | 4.5 | 610 | 1.16 | |||
Advantages
Suitable for single channel or multi-channel turn conveying of bottles, cans, box frames and other products.
The conveyor line is easy to clean and a magnetic track is needed for turning.
Hinged pin shaft connection, can increase or decrease the chain joint.
