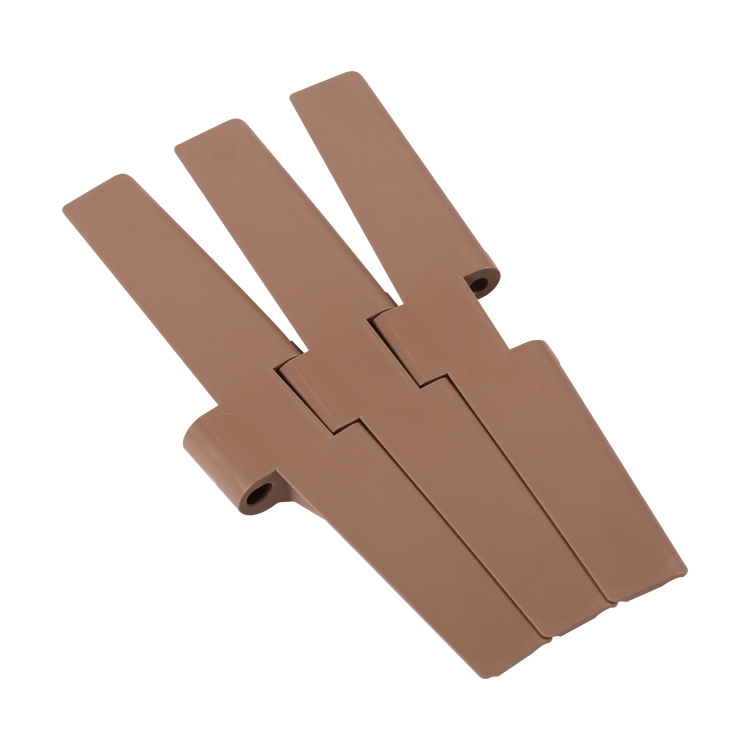

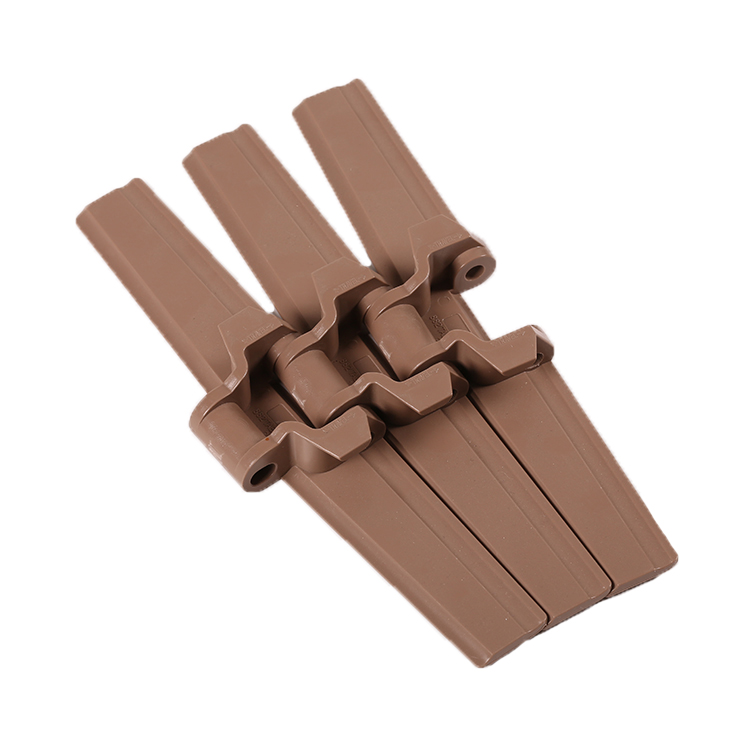

882TAB Side Flexible Plastic Chains

Short Description:

Mainly used for all kinds of food industry, such as beverage, bottle, can and other conveyors.

The longest distance: 12M

Max.speed: lubricant 90M/min; Dryness 60M/min

Working Load: 3800N

Pitch: 38.1mm

Pin material: austenitic stainless steel

Plate material: POM acetal

Temperature: -40~90℃

Packing: 10 feet=3.048 M/box 26pcs/M

Send email to us

Product Detail

Product Tags

Parameter

Chain Type	Plate Width		Working Load		Back Radius(min)	Weight
	mm	inch	N(21℃)	Ibf(21℃)	mm	Kg/m
882TAB-K500	127	5.0	3800	610	40	1.92
882TAB-K600	152.4	6.0				2.10
882TAB-K750	190.5	7.5				2.47
882TAB-K1000	254	10.00				2.87
882TAB-K1200	304.8	12.00				3.41

882TAB Series Machined Drive Sprockets

Machined Sprockets	Teeth	PD(mm)	OD(mm)	D(mm)
1-882TAB-10-20	10	123.5	126.1	20 25 30 40
1-882TAB-11-20	11	135.3	137.4	25 30 35 40
1-882TAB-12-20	12	147.3	149.9	25 30 35 40

Suitable for a variety of environment for the conveying lines, the use of the highest temperature can reach 120℃.
Good wear-resisting effect, suitable for long time load, vibration absorption and noise reduction during operation.
Other structures can be pursued.

882TAB Corner Tracks

Machined Idler	R (mm)	W(mm)
882TAB-K500-R610-135-1	610	135
882TAB-K600-R610-160-1	610	160
882TAB-K750-R610-200-1	610	200
882TAB-K1000-R610-260-1	610	260

Advantage

It is suitable for single channel or multi-channel turning conveying of tank, box frame, film wrap and other products.
Hook foot limit, smooth operation
Hinged pin shaft connection, can increase or decrease the chain joint
