Plastic adjustable articulated feet
Short Description:
.Suitable for mechanical equipment support.
.Chassis with two fixable holes.
.The screw is the universal form of the ball head, which can be tilted at a certain ngle to keep the equipment parallel on the unbalanced ground.
Base:Reinforced Polyamide with Rubber Pad;
Spindle and Nut: Carbon Steel Nickle Plated, or Stainless Steel;
With rubber pad acts as anti-slip and shockproof.
Product Detail
Product Tags
Code
|
Dia.M
|
Length L
|
Base Dia. D
|
|

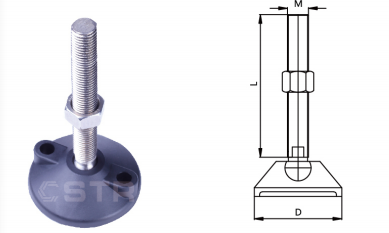

CSTRANS 202 |
M8-M36 |
75-250mm |
60 80 100 |
|

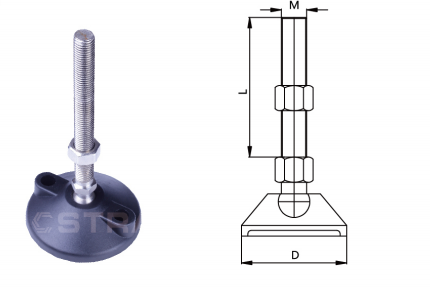

CSTRANS 203 |
M8-M24 |
75-250mm |
50 60 80 100 |
The small hexagonal nut acts as a limit |
Material: |
Base:Reinforced Polyamide with Rubber Pad;Spindle and Nut: Carbon Steel Nickle Plated, or Stainless Steel;With rubber pad acts as anti-slip and shockproof. |
Max Load: 600kg-1500kg |
