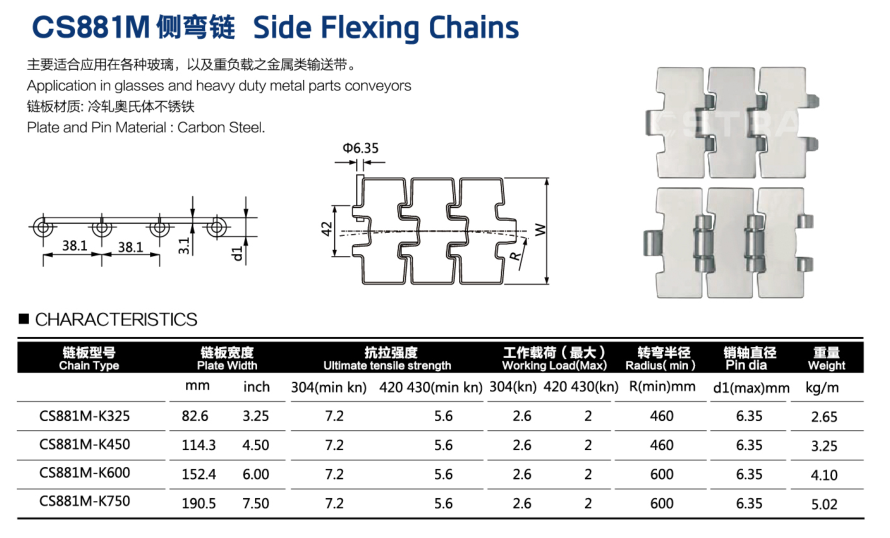

Conveyor Stainless Steel Chains -SS881M Side Flexing Chains
SS8157 Single Straight Chains
| Chain Type | Plate Width | Ultimate tensile strength | Working load(Max) | Radius(min) | Weight | |||
| mm | inch | 420/430 (min kn) | 420/430(kn) | mm | Kg/m | |||
| SS881M-K325 | 82.6 | 3.25 | 5.6 | 2 | 460 | 2.65 | ||
| SS881M-K450 | 114.3 | 4.50 | 5.6 | 2 | 460 | 3.25 | ||
| SS881M-K600 | 152.4 | 6.00 | 5.6 | 2 | 600 | 4.10 | ||
| SS881M-K750 | 190.5 | 7.50 | 5.6 | 2 | 600 | 5.02 | ||
| Pitch ：38.1mm | Pin Dia(Max)：6.35mm | |||||||
| Material: ; ferritic stainless steel (magnetic)Pin material：stainless steel. | ||||||||
| Maximum conveyor length: 15meters. | ||||||||

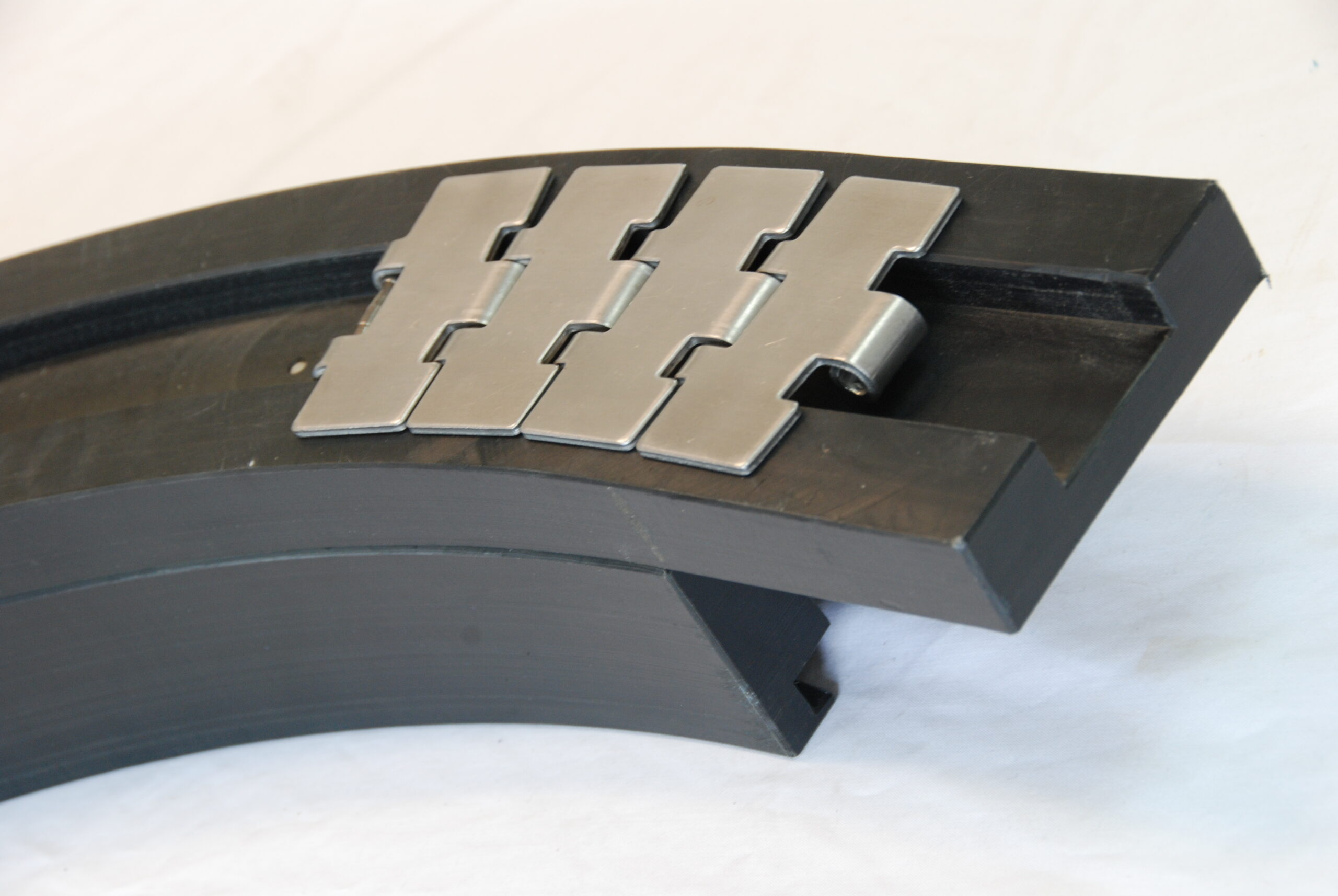

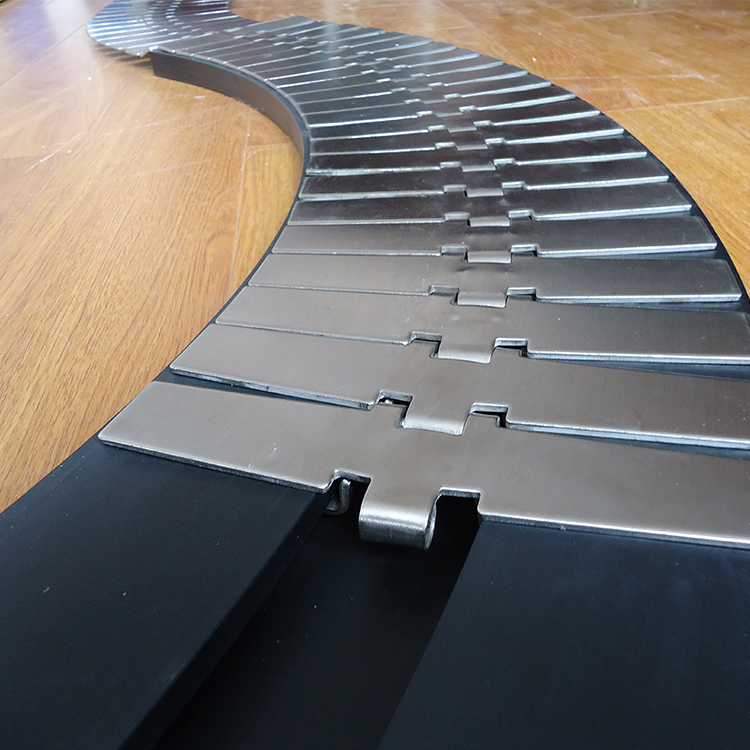

| Corner tracks or turning disks can be selected for curved transportation. | ||||||||
| Packing: 10 feet=3.048 M/box 26pcs/m | ||||||||
Application
Ideal for the foods
soft drinks
breweries
glass bottling filling
wine industry
dairy
cheese
beer production
incline conveying
canning and pharmaceutical packaging
Advantages
These Chains are characterized by high working loading , very-resistant to dress in and incredibly flat and sleek conveying surfaces. The chains can be used in a lot of programs and are not just confined to the Beverage Business.
Stainless Steel SS881 M Magnetic Table Top Chain, Side Flexing Chains, SS881 MO Magnet Optimal, high tensile strength, with no tabs or bevels on the chains - easily removed for maintenance or cleaning, suitable for conveying glass bottles, beer industry.
