Conveyor Parts-PA6 or Aluminum or Stainless Steel Door Hinge
|

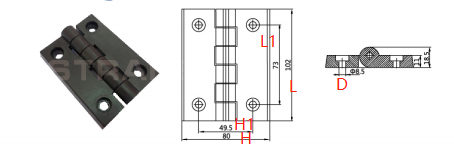

CODE |
item |
D |
L |
L1 |
H |
H1 |

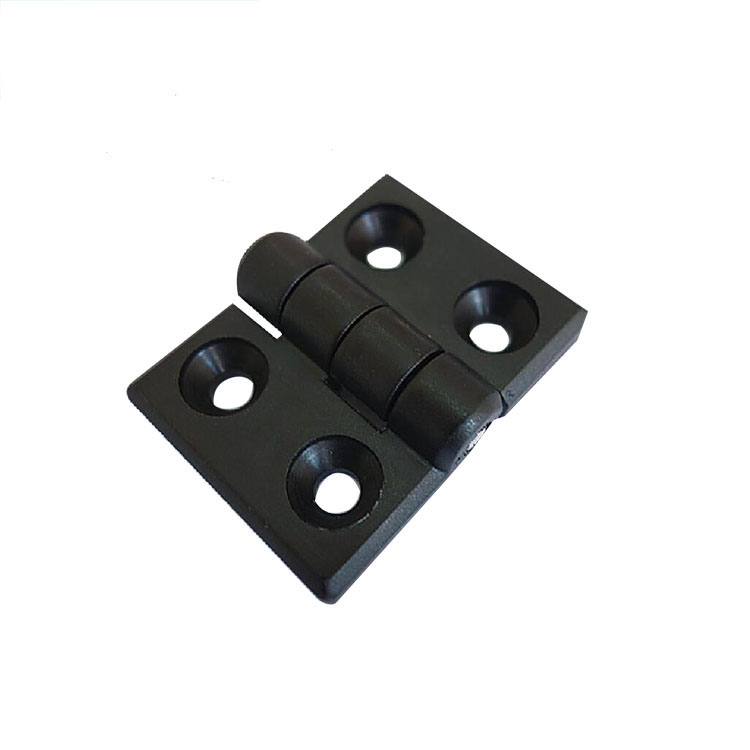

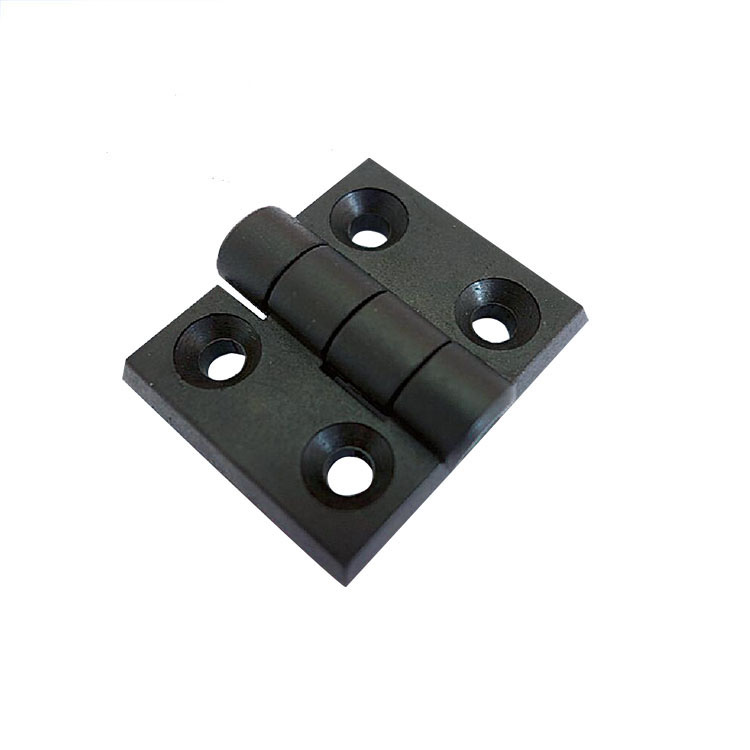

| CSTRANS701 | Hinge | 6.3 | 45 | 24 | 53 | 30 |
| CSTRANS702 | 6.5 | 45 | 24 | 60 | 35 | |

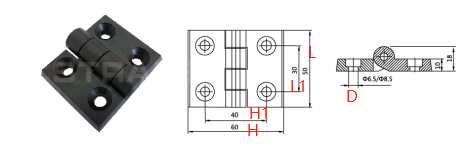

| CSTRANS703 | 6.5/8.5 | 50 | 30 | 60 | 40 | |

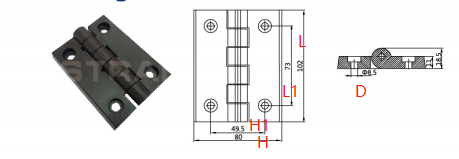

| CSTRANS704 | 8.5 | 102 | 73 | 80 | 49.5 | |

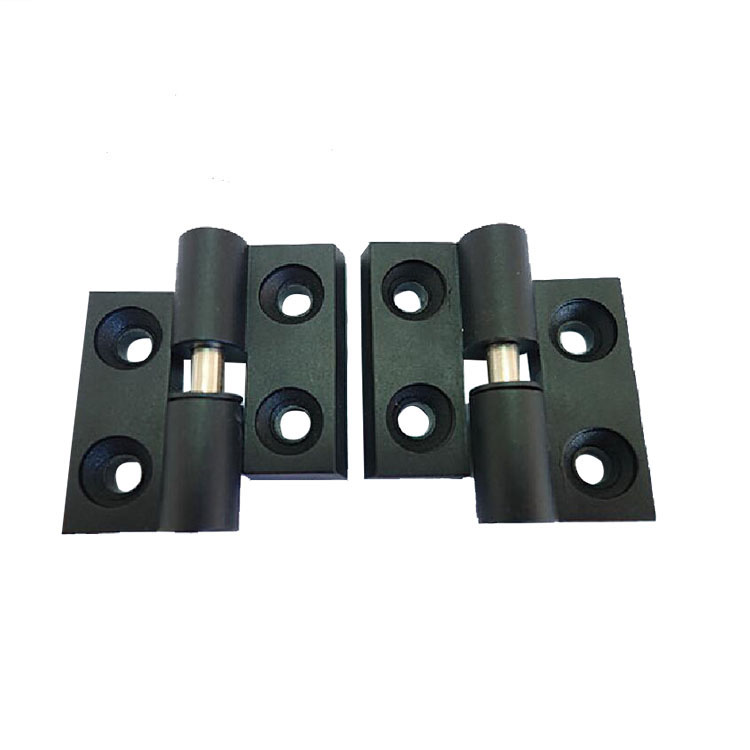

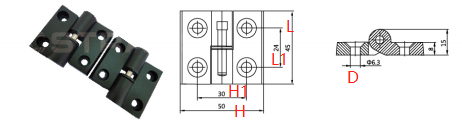

| CSTRANS705 | Detachable hinge | 6.3 | 45 | 24 | 50 | 30 |

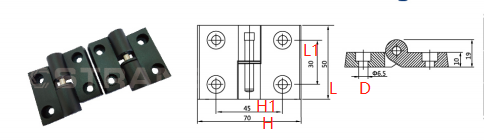

| CSTRANS706 | 6.5 | 50 | 30 | 70 | 45 | |

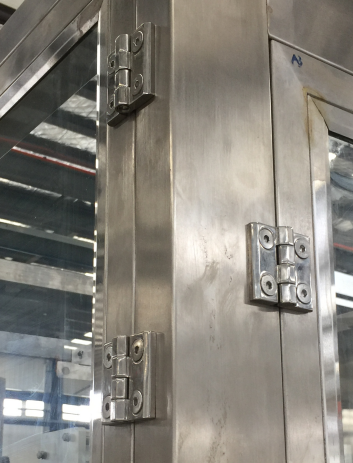

| Material: Reinforced Polyamide or Aluminum or stainless steelColor:BlackScope of application: electric cabinet door, chassis door, etcProduct features: oil resistance, high temperature resistance, acid resistanceThe round steel pin has a strong anti - rust ability because it has been chrome plated.The maximum turning Angle is 180°. | ||||||
