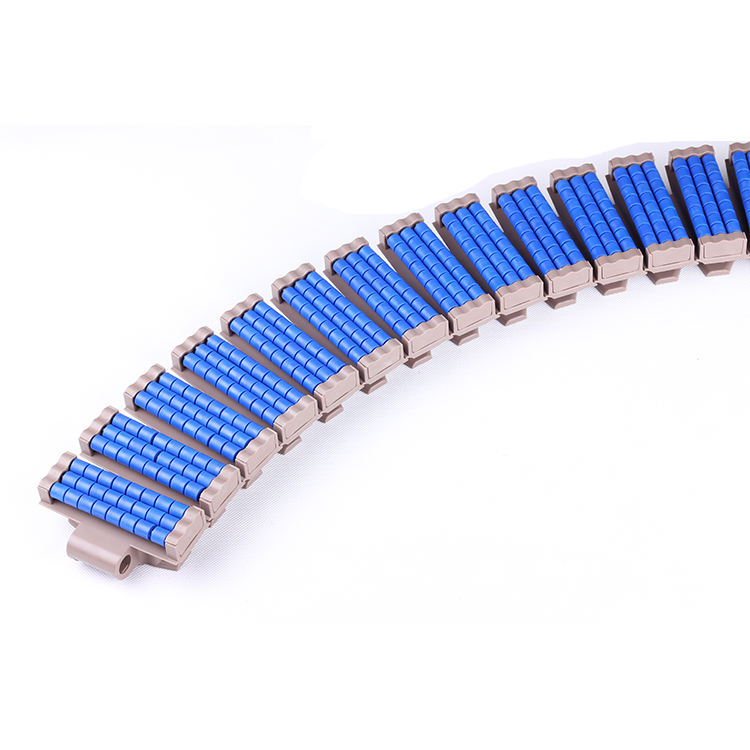

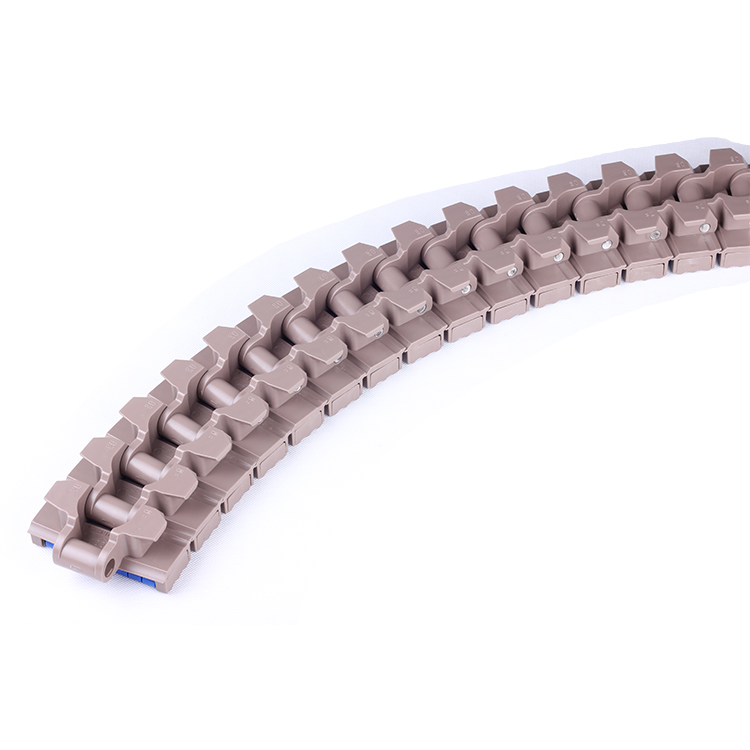

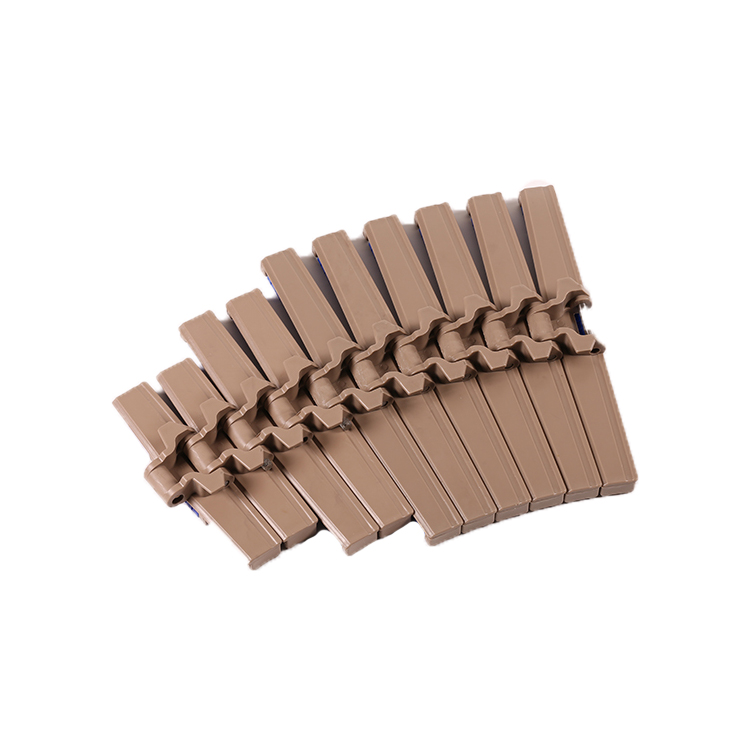

LBP882TAB Side Flex Roller Chains

Short Description:

Mainly used for all kinds of food industry, such as beverage, bottle, can and the conveying of silver paper box, beverage package.

The longest distance: 12M

Pitch: 38.1mm

Working load: 3830N

Pin material: stainless steel

Plate and rollers material: POM(Temperature:-40~90℃）

Packing: 5 feet=1.524 M/box 26pcs/M

Send email to us

Product Detail

Product Tags

Parameter

Chain Type	Plate Width	Roller Width	Reverse Radius	Radius	Weight
Chain Type	mm	mm	(min)mm	(min)	kg
LBP882-TAB-k375	95.2	79	101	610	3.7
LBP882-TAB-k450	114.3	105			4.5
LBP882-TAB-k750	190.5	174			5.1
LBP882-TAB-k1000	254	238			7.1
LBP882-TAB-k1200	304.8	289			8.3

Advantages

Suitable for cardboard boxes, silver paper box,beverage and other products which will accumulate on the turning conveying line body.
When conveying material accumulation, can effectively avoid the generation of hard friction.
The top is roller multi-part buckle structure, the roller runs smoothly; Bottom hinged pin connection, can increase or decrease the chain joint.
