SS802 Double Straight Chains

Short Description:

Stainless Steel SS802 Table Top Chain double hinge straight running, with excellent high tensile strength which can be utilized for long conveyors or large heavy items, esp. conveying glass bottles crates and inline feeders. with rubber on top can reduce friction and improve stability.

Send email to us

Product Detail

Product Tags

SS802 Double Straight Chains

Chain Type	Plate Width		Working load(Max)		Ultimate tensile strength		Weight
Chain Type	mm	inch	304(kn)	420 430(kn)	304(min kn)	420 430(min kn)	Kg/m
SS802-K750	190.5	7.5	6.4	5	16	12.5	5.8
SS802-K1000	254	10.0	6.4	5	16	12.5	7.73
SS802-K1200	304.8	12.0	6.4	5	16	12.5	9.28

Pitch ：38.1mm			Thickness：3.1mm
Material: austenitic stainless steel (non-magnetic); ferritic stainless steel (magnetic) Pin material：stainless steel.
Maximum conveyor length: 15 meters.
Max. Speed : lubricant 90m/min ; Dryness 60m/min.
Packing: 10 feet=3.048 M/box 26pcs/m

Application

SS802 Double straight chains widely used in all kinds of conveyor of bottle and heavy load such as metal. Especially applied to beer industry.

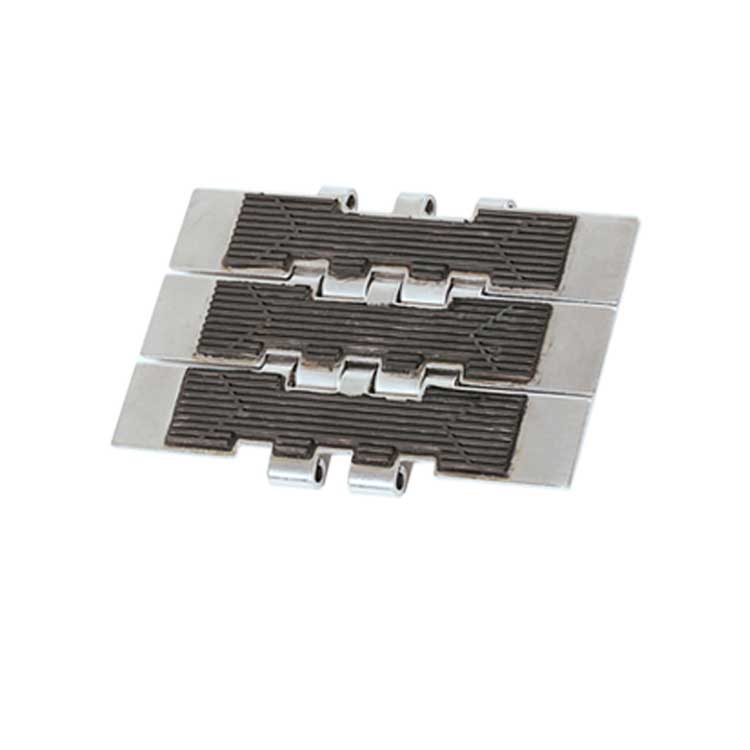

SS802F with rubber application in climbing machines, especially suitable for carton conveying.

Ideal for the food, soft drinks, breweries, glass bottling filling, wine industry, dairy, cheese, beer production, incline conveying, canning and pharmaceutical packaging.
Suggestion: lubricant.

Advantage

Steel and Stainless Steel Flat Top Chains are produced in straight running and side
flexing versions and the range are covered by a broad selection of raw materials and chain link profiles to provide solutions forall conveying applications.

These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces. The chains can be used in many applications and are not just confined to the Beverage Industry.
