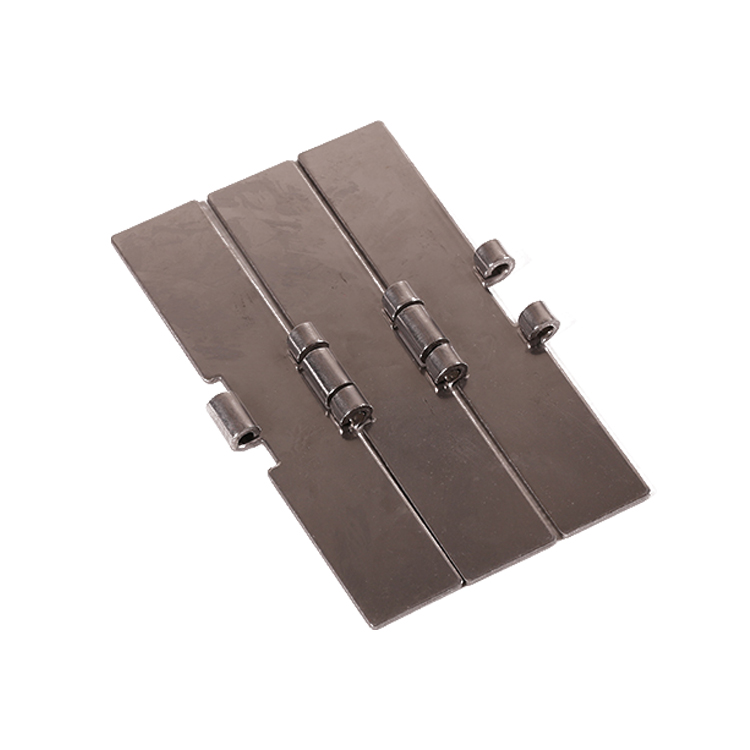

SS8157 Single Straight Chains
SS8157 Single Straight Chains
| Chain Type | Plate Width | Working load(Max) | Ultimate tensile strength | Weight | |||
| mm | inch | 304(kn) | 420(kn) | 304(min kn) | 420 430(min kn) | Kg/m | |
| SS8157-k750 | 190.5 | 7.50 | 3.2 | 2.5 | 8 | 6.25 | 5.8 |
| Pitch ：38.1mm | Thickness：3.1mm | ||||||
| Material: austenitic stainless steel (non-magnetic);ferritic stainless steel (magnetic)Pin material：stainless steel. | |||||||
| Maximum conveyor length: 15 meters. | |||||||
| Max. Speed : lubricant 90m/min ;Dryness 60m/min. | |||||||
| Packing: 10 feet=3.048 M/box 26pcs/m | |||||||
| Application: widely used in all kinds of conveyor of glasses and heavy load such as metal. Especially applied to beer industry.Suggestion: lubricant. | |||||||
Advantages
Steel and Stainless Steel Flat Top Chains are produced in straight running and side flexing versions and the range are covered by a broad selection ofraw materials and chain link profiles to provide solutions for all conveying applications.
These Flat Top Chains are characterized by high working loads, highly-resistant to wear and extremely flat and smooth conveying surfaces.
The chains can be used in many applications and are not just confined to the Beverage Industry.
Widely used in all kinds of conveyor of the bottle and heavy load such as metal. Especially applied to the beer industry.
