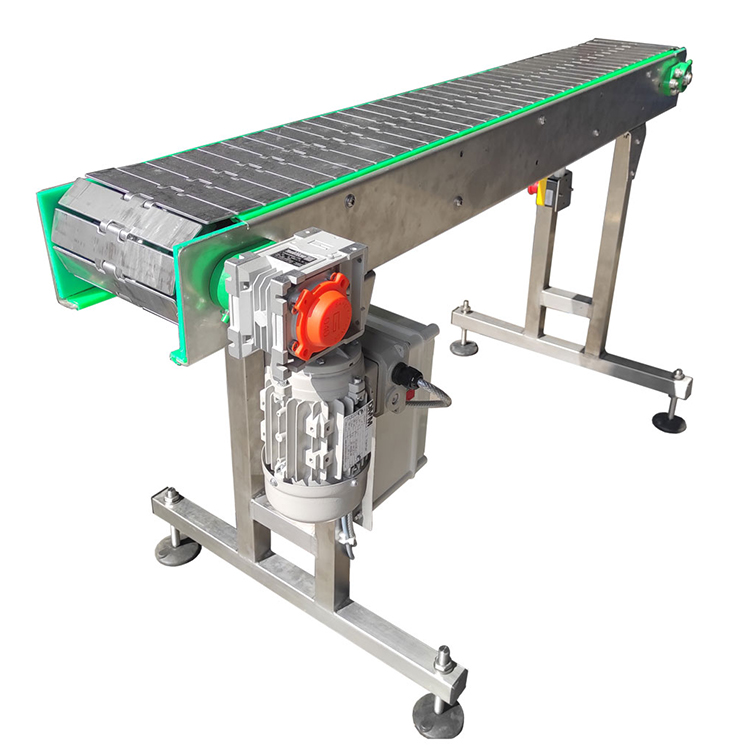

Stainless Steel Top Chain Conveyor System
Video

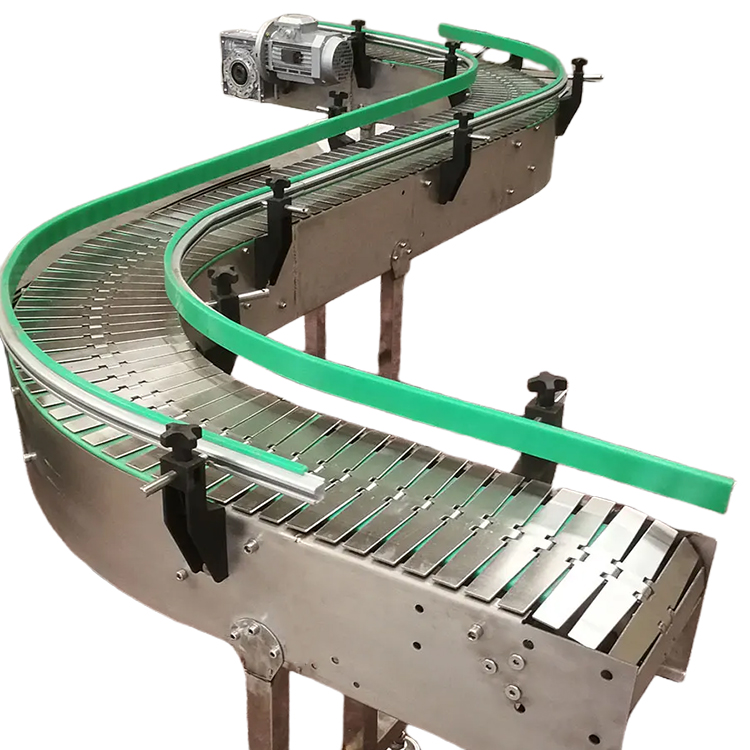

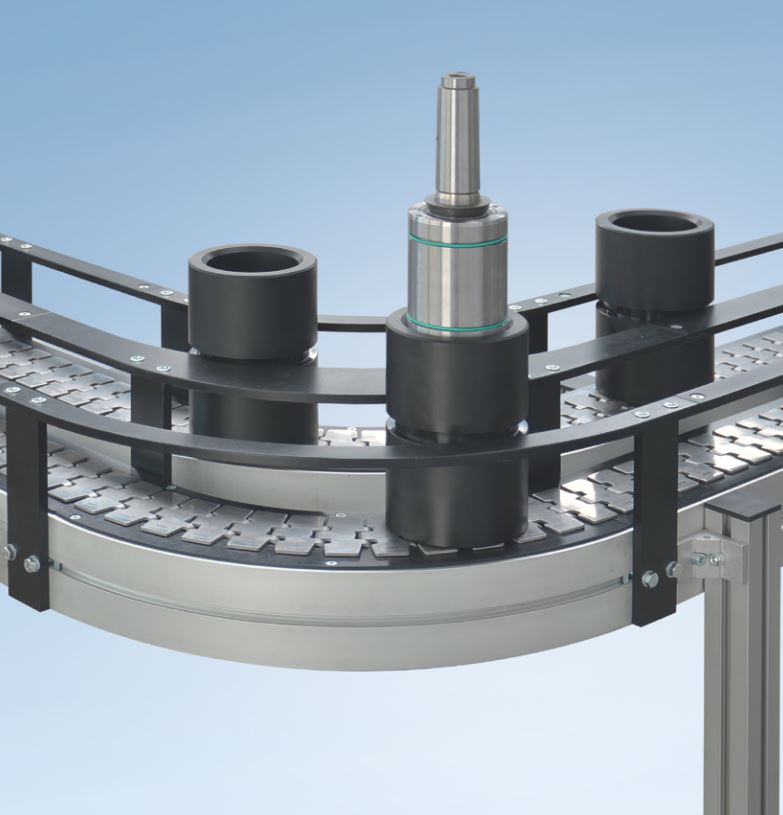

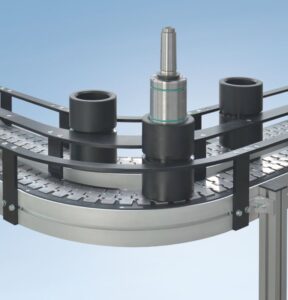

CSTRANS stainless steel and plastic flat top chains are available as straight running or side flexing versions, in a variety of materials, widths and plate thicknesses. Featuring low friction values, high resistance to wear, good noise damping, high-quality workmanship and surface finishes, they are widely used in the beverage industry and beyond.
Chain plate shape: flat plate, punching, baffle.
Chain material: carbon steel, galvanized, 201 stainless steel, 304 stainless steel
Chain plate pitch: 25.4MM, 31.75MM, 38.1MM, 50.8MM, 76.2MM
Chain plate string diameter: 4MM, 5MM, 6MM, 7MM, 8MM, 10MM
Chain plate thickness diameter: 1MM, 1.5MM, 2.0MM, 2.5MM, 3MM
Feature
Slat Conveyor Chains use slats or aprons mounted on the twin strands of drive chains as the carrying surfaces, ideal for applications like high temperature ovens, heavy-duty goods or other tough conditions.
Slats are usually made of engineered plastic, galvanized carbon steel or stainless steel. Slat conveyors are a type of conveying technology that utilizes a chain-driven loop of slats to move product from one of its ends to another.
The chain is driven by a motor, which causes it to cycle just as belt conveyors do.
-Stable Performance Good Appearance
-Meet The Requirement Of Single Transportation
-Widely Used For Automatic Transmission
-Can Select Different Width, Shapes
Advantages
CSTRANS Stainless steel flat top chains made of hardened material, which offers excellent tensile strength, corrosion and abrasion resistance.
Highlights:
Increased wear resistance
Corrosion-proof
Better wear and corrosion properties when compared to carbon steel equivalent
Available in most standard sizes.
punching chain plate has high bearing capacity, good resistance to high temperature and corrosion, and long service life.
From packaged meat and dairy to bread and flour, our solutions assure trouble-free operation and long service life. Ready to be installed in any application area from primary packaging to end of line. Suitable packages are pouches, standing pouches, bottles, gable tops, cartons, cases, bags, skins and trays.
Application
Stainless steel Punching chain plates conveyor belt are widely used in glass products, dehydrated vegetables, jewelry and other industries, and are deeply favored and supported by users.
Widely used in the automatic delivery, distribution, and post-packaging of food, cans, pharmaceuticals, beverages, cosmetics and detergents, paper products, condiments, dairy and tobacco.
We offer a range of premium quality Single Hinge SS Slat Chain that is manufactured using best grade stainless steel. These chains are suitable for handling glass bottles, pet containers, kegs, crates etc. Further, our range is available in varied specifications and as per the customized requirements of clients
The Advantages Of Our Company
Our team has extensive experience in design, manufacturing, sales, assembly and installation of modular conveyor systems. Our goal is to find the best solution for your conveyor application, and apply that solution in the most cost-effective way possible. Using specialized techniques of the trade, we can provide conveyors that are higher quality but less expensive than the other companies, without sacrificing attention to detail. Our conveyor systems are delivered on-time, within budget and with the highest quality solutions that exceed your expectations.
- 17 years of manufacturing and R&D experience in the conveyor industry.
- 10 Professional R&D Teams.
- 100+ Sets of Chains Molds.
- 12000+ solutions.
