Nylon Plastic Guide Rail Brackets/ Adjustable Brackets for Conveyor
Parameter
Code |
Item |
Bore size |
Color |
Material |
CSTRANS103 | Small Brackets | Φ12.5 | Body: PA6Fastener: stainless steel Insert: Carbon steel nickel plated or Copper. |
|
CSTRANS104 | Medium Brackets | Φ12.5 | ||
CSTRANS105 | Large Brackets | Φ12.5 | ||

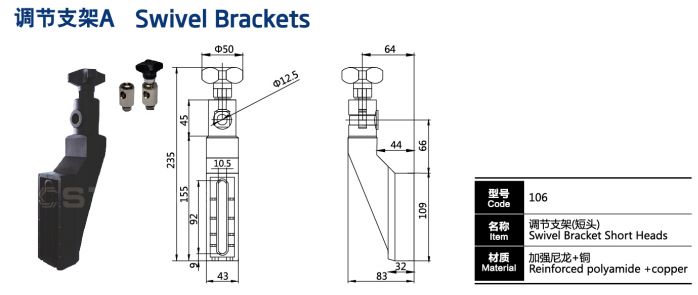

CSTRANS106 | Swivel Brackets A (Short heads) |
Φ12.5 | ||

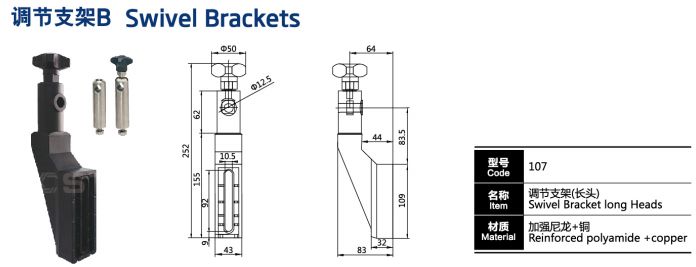

CSTRANS107 | Swivel Brackets B (Long heads) |
Φ12.5 | ||
It is suitable for the structural parts of the equipment guardrail bracket.Can rotate Angle, adjust the support direction.The fixed head is locked on the main body by fastener, rotating the head tight round rod to achieve the purpose of locking. |
