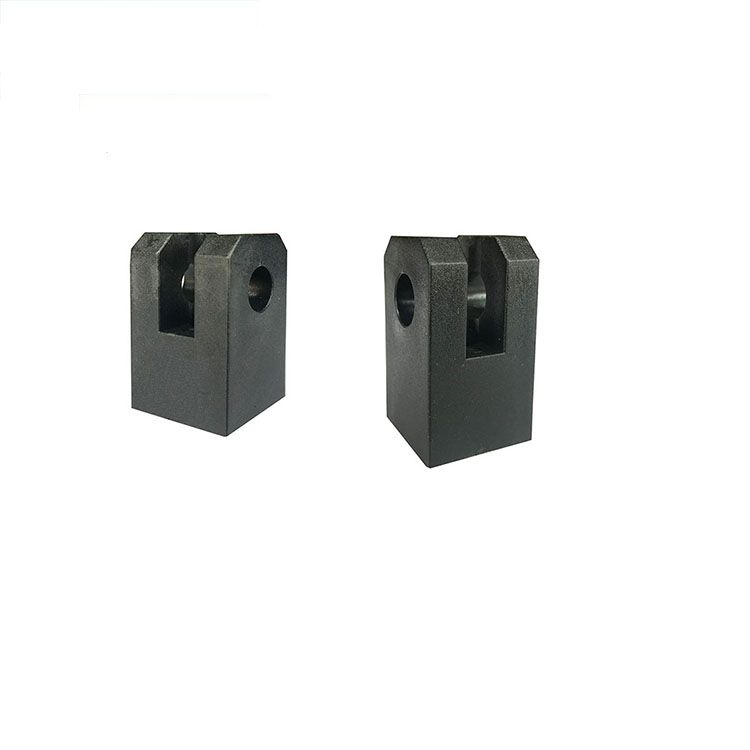

T-Connecting Joint & Connecting Joint

Short Description:

It is suitable for the structural components of the equipment bracket.
The fisheye bolt bracket head can be tensioned and locked round rod.
The bracket head can also be used on the side to avoid taking up space at the top.
The bottom can also butt the inner tooth round bar, with the bolt connection.

Send email to us

Product Detail

Product Tags

Parameter

Code	Item	Bore size	Color	Material

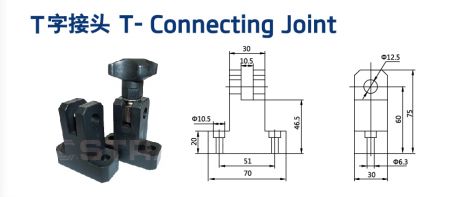

CSTRANS 602	T-Connecting Joint/Cross Clamp	Φ12.5	Black	Body: PA6Fastener: sus304\ Carbon steel nickel plated

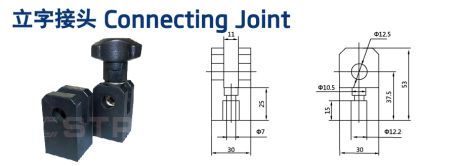

CSTRANS 603	Connecting Joint/Cross Clamp	Φ12.5	Black
It is suitable for the structural components of the equipment bracket.The fisheye bolt bracket head can be tensioned and locked round rod. The bracket head can also be used on the side to avoid taking up space at the top. The bottom can also butt the inner tooth round bar, with the bolt connection.
