V block plastic flexible conveyor chain Featured Image
  • V block plastic flexible conveyor chain
  • V block plastic flexible conveyor chain

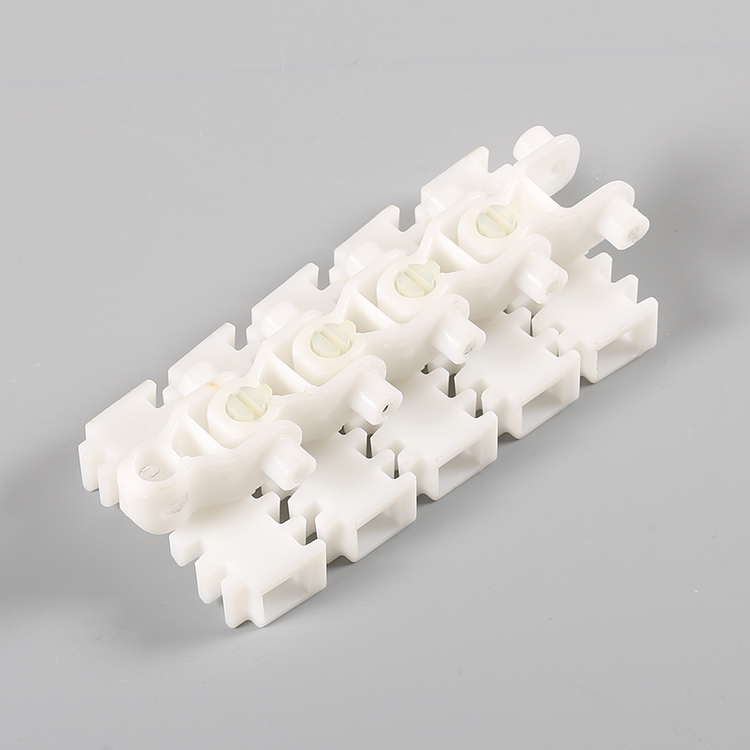

V block plastic flexible conveyor chain

Short Description:

Flexible conveyor chains is suitable for all kinds of manufacturing plants, food and beverage factories, belt material can be selected from PP/POM according to the products transported, the dimensions and volts can be customized.

Product Detail

Product Tags

Parameter

123
Chain Type Plate Width Working Load Back Radius(min) Backflex Radius(min) Weight
mm inch N(21℃) mm mm Kg/m
63V 63.0 2.50 2100 40 150 0.80

63 Machined Sprockets

wqfqwf
Machine Sprockets Teeth Pitch Diameter Outside Diameter Center Bore
1-63-8-20 8 66.31 66.6 20 25 30 35
1-63-9-20 9 74.26 74.6 20 25 30 35
1-63-10-20 10 82.2 82.5 20 25 30 35
1-63-11-20 11 90.16 90.5 20 25 30 35
1-63-16-20 16 130.2 130.7 20 25 30 35 40

Application

Beverage plant

Beverage filling application

Dairy production plant

Aerosol filling

Glass ware handling

Chains

Advantage

flexible chain conveyor

It is suitable for the occasion of small load strength, and the operation is more stable.
The connecting structure makes the conveyor chain more flexible, and the same power can realize multiple steering.
The tooth shape can achieve a very small turning radius.
